Siemens 3RT2016-1AP01 SIRIUS Contactor 9A 4kW 230V AC 3-pin screw connect

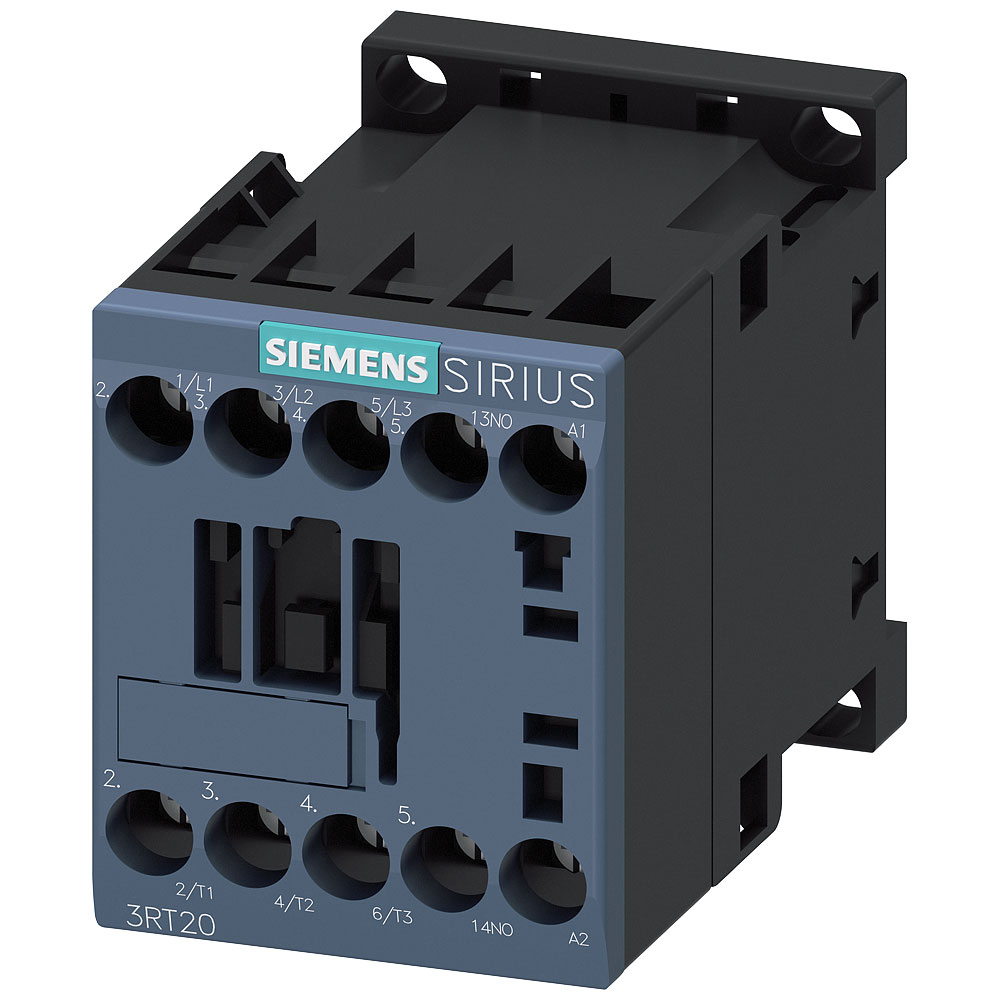

Image Representative of Range

Siemens 3RT2016-1AP01 SIRIUS Contactor 9A 4kW 230V AC 3-pin screw connect

Siemens
Order Code:

06-8389

Brand: Siemens MPN: 3RT20161AP01 EAN-13: 4011209783904
Qty Unit Price (Ex VAT)
1+ £32.78
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
13 available to back orderBack-order availability date - 12/01/2026

The Siemens 3RT2016-1AP01 contactor is designed for controlling electrical power circuits up to 4 kW and supports a current rating of 9 A with a voltage of 230 V AC. It features an auxiliary contact, enhancing its functionality in various electrical systems. Typically used in industrial and commercial applications, this component is integral to reliable motor control and switching operations.
Type Contactor
Coil Voltage 230V AC
Mounting Style DIN rail
Terminals 3-pin
Auxiliary contact type 1 maker
Connection Screw terminal
Contact Type 3 makers
Current load 9A
Depth 73mm
Dimensions (W x H x D) 45 x 58 x 73 mm
Durability 3.0E7
Height 58mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2016-1AP01
Misc Attribute 2 S00
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Power 4kW
Rated operation current Ie at AC-1, 400 V 22A
Rated operation current Ie at AC-3, 400 V 9A
Rated operation current Ie at AC-4, 400 V 8.5A
Rated operation power at AC-3, 400 V 4kW
Rated operation power NEMA 3.677493749
Suitable for distribution board TRUE
Switching voltage (max.) 400V AC
Type of electrical connection of main circuit Screw connection
Voltage type for actuating AC
Width 45mm
