Siemens 3RT20152BB42 Contactor 3-pole 12 A 24 V DC screw terminal

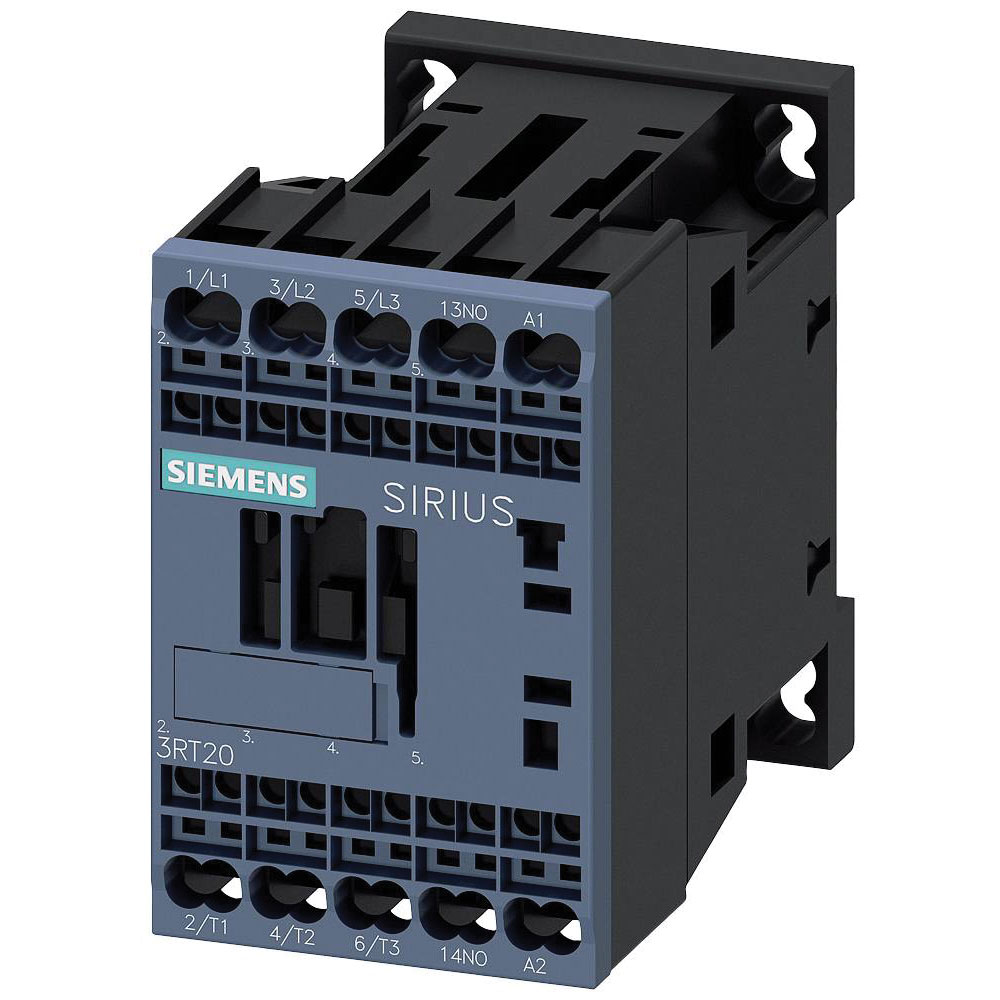

Image Representative of Range

Siemens 3RT20152BB42 Contactor 3-pole 12 A 24 V DC screw terminal

Siemens
Order Code:

06-8385

Brand: Siemens MPN: 3RT20152BB42 EAN-13: 4011209827400
Qty Was Unit Price (Ex VAT)
1+ £30.48 £30.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

Siemens manufactures the 3RT2015-2BB42 contactor, which operates at 690 V AC. This electrical contactor features three main poles designed for switching and controlling electric motors. It is typically used in industrial applications for reliable motor control and protection.
Type Contactor
Coil Voltage 690V AC
Connection Spring-loaded connector
Contact Current Rating 12A
Contact Type 3 makers
Depth 73mm
Dimensions (W x H x D) 45 x 70 x 73 mm
Durability 3000 0000
Height 70mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2015-2BB42
Misc Attribute 2 S00
Mounting Style Spring-loaded connector
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact N/A
Number of normally closed contacts as main contact N/A
Number of normally open contacts as main contact 3
Number of Poles 3
Operating voltage AC 50 Hz N/A
Operating voltage AC 60 Hz N/A
Rated control supply voltage AC 50 Hz N/A
Rated control supply voltage AC 60 Hz N/A
Rated control supply voltage DC 24 - 24V
Rated operation current Ie at AC-1, 400 V 18A
Rated operation current Ie at AC-3, 400 V 7A
Rated operation current Ie at AC-4, 400 V 6.5A
Rated operation power at AC-3, 400 V 3kW
Rated operation power at AC-4, 400 V N/A
Rated operation power NEMA 2.20649625
Suitable for distribution board TRUE
Terminals 3-pin
Type of electrical connection of main circuit Spring clamp connection
Voltage type for actuating DC
Width 45mm
