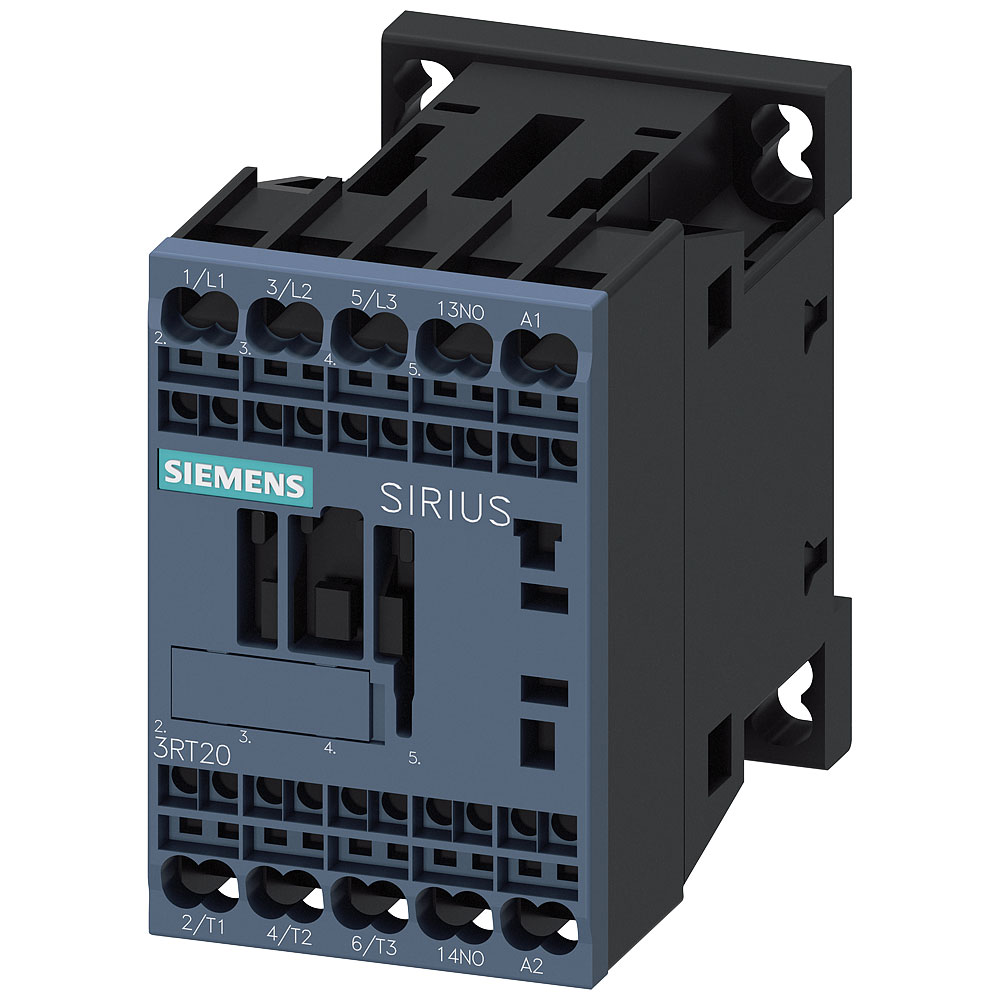

Siemens 3RT20152AP01 S00 Contactor 12A 690V AC 3-pole Screw Terminal

Image Representative of Range

Siemens 3RT20152AP01 S00 Contactor 12A 690V AC 3-pole Screw Terminal

Siemens
Order Code:

06-8381

Brand: Siemens MPN: 3RT20152AP01 EAN-13: 4011209785212
Qty Unit Price (Ex VAT)
1+ £31.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
12 available to back orderBack-order availability date - 09/01/2026

The Siemens 3RT2015-2AP01 contactor is an electrical device designed for controlling and switching 690 V AC motors. It has three poles, making it suitable for use in industrial motor starters and power control applications. Typical applications include automation systems and machinery requiring reliable motor control.
Type Contactor
Coil Voltage 690V AC
Terminals 3-pin
Connection Spring-loaded connector
Contact Type 3 makers
Depth 73mm
Dimensions (W x H x D) 45 x 70 x 73 mm
Durability 3000 0000
Height 70mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2015-2AP01
Misc Attribute 2 S00
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Rated operation current Ie at AC-1, 400 V 18A
Rated operation current Ie at AC-3, 400 V 7A
Rated operation current Ie at AC-4, 400 V 6.5A
Rated operation power at AC-3, 400 V 3kW
Rated operation power at AC-4, 400 V 3kW
Rated operation power NEMA 2.20649625
Suitable for distribution board TRUE
Type of electrical connection of main circuit Spring clamp connection
Voltage type for actuating AC
Width 45mm
