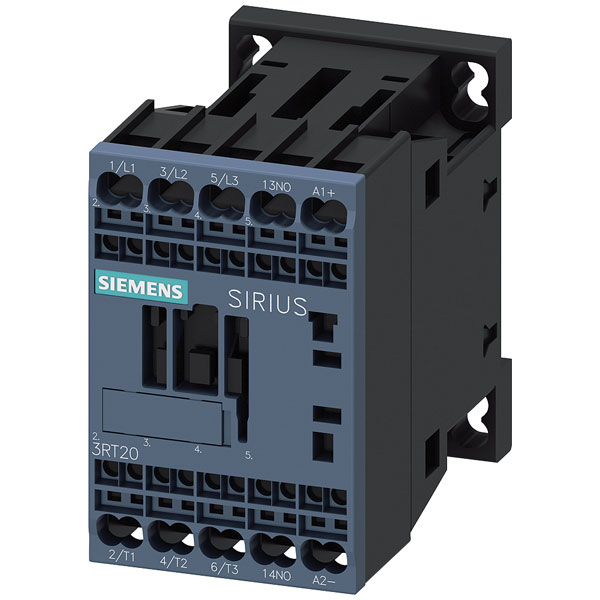

Siemens 3RT2015-2BB41 Contactor 690V AC 12A 24V DC S00 screw terminal

Image Representative of Range

Siemens 3RT2015-2BB41 Contactor 690V AC 12A 24V DC S00 screw terminal

Siemens
Order Code:

06-8383

Brand: Siemens MPN: 3RT20152BB41 EAN-13: 4011209785243
Qty Unit Price (Ex VAT)
1+ £37.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
10 available to back orderBack-order availability date - 09/01/2026

The Siemens 3RT2015-2BB41 contactor is an electrical contactor designed for use with 690 V AC systems. It features three poles (or "makers") for controlling electrical power circuits. Typically used in industrial settings, it is ideal for motor control and automation applications.
Type Contactor
Coil Voltage 690V AC
Terminals 3-pin
Connection Spring-loaded connector
Contact Type 3 makers
Depth 73mm
Dimensions (W x H x D) 45 x 70 x 73 mm
Durability 3000 0000
Height 70mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2015-2BB41
Misc Attribute 2 S00
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Rated operation current Ie at AC-1, 400 V 18A
Rated operation current Ie at AC-3, 400 V 7A
Rated operation current Ie at AC-4, 400 V 6.5A
Rated operation power at AC-3, 400 V 3kW
Rated operation power at AC-4, 400 V 3kW
Rated operation power NEMA 2.20649625
Suitable for distribution board TRUE
Type of electrical connection of main circuit Spring clamp connection
Voltage type for actuating DC
Width 45mm
