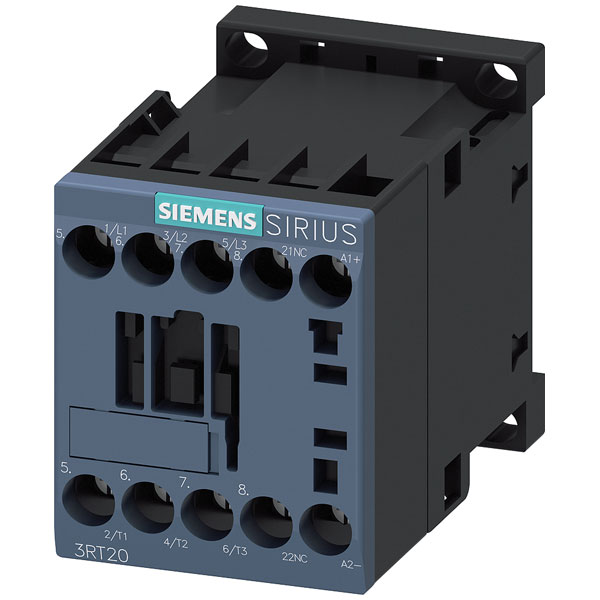

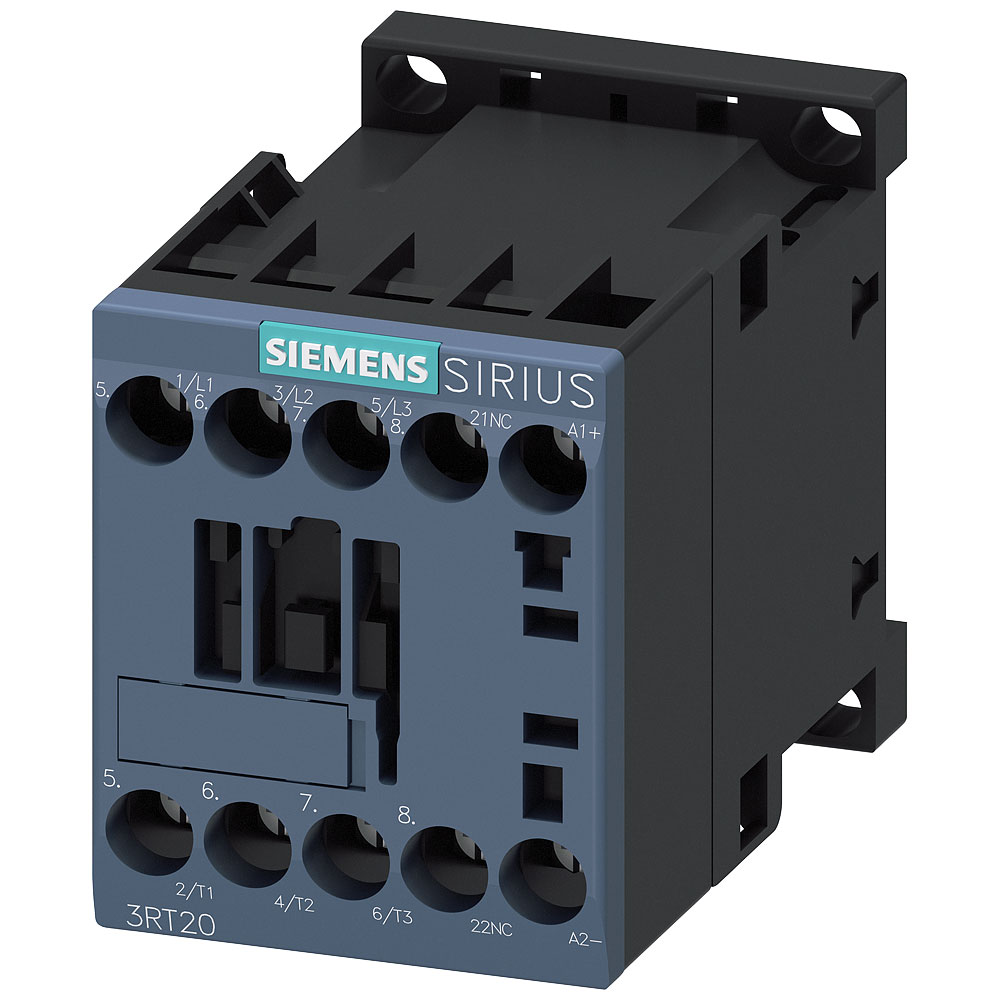

Siemens 3RT2015-1BB42-1AA0 Contactor 3-pole 7A 690V 3kW screw terminal

The Siemens 3RT2015-1BB42-1AA0 is an electrical contactor designed for a 690 V AC application. It features three-phase current protection and is suitable for use in motor control applications such as star-delta starting. Typical uses include coupling, heating, and load shedding protection in various electrical installations.

Type	Electrical contactor
Coil Voltage	690V AC
Contact Type	3 makers
Depth	73mm
Dimensions	(W x H x D) 45 x 58 x 73 mm
Durability	3000 0000
Height	58mm
IP Rating	IP20
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RT2015-1BB42-1AA0
Misc Attribute 2	S00
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	N/A
Number of normally closed contacts as main contact	N/A
Number of normally open contacts as main contact	3
Number of Poles	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Rated control supply voltage AC 50 Hz	N/A
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	24-24V
Rated operation current Ie at AC-1, 400 V	18A
Rated operation current Ie at AC-3, 400 V	7A
Rated operation current Ie at AC-4, 400 V	6.5A
Rated operation power at AC-3, 400 V	3kW
Rated operation power at AC-4, 400 V	3.0kW
Rated operation power NEMA	2.20649625
Suitable for distribution board	true
Terminals	3-pin
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Width	45mm
