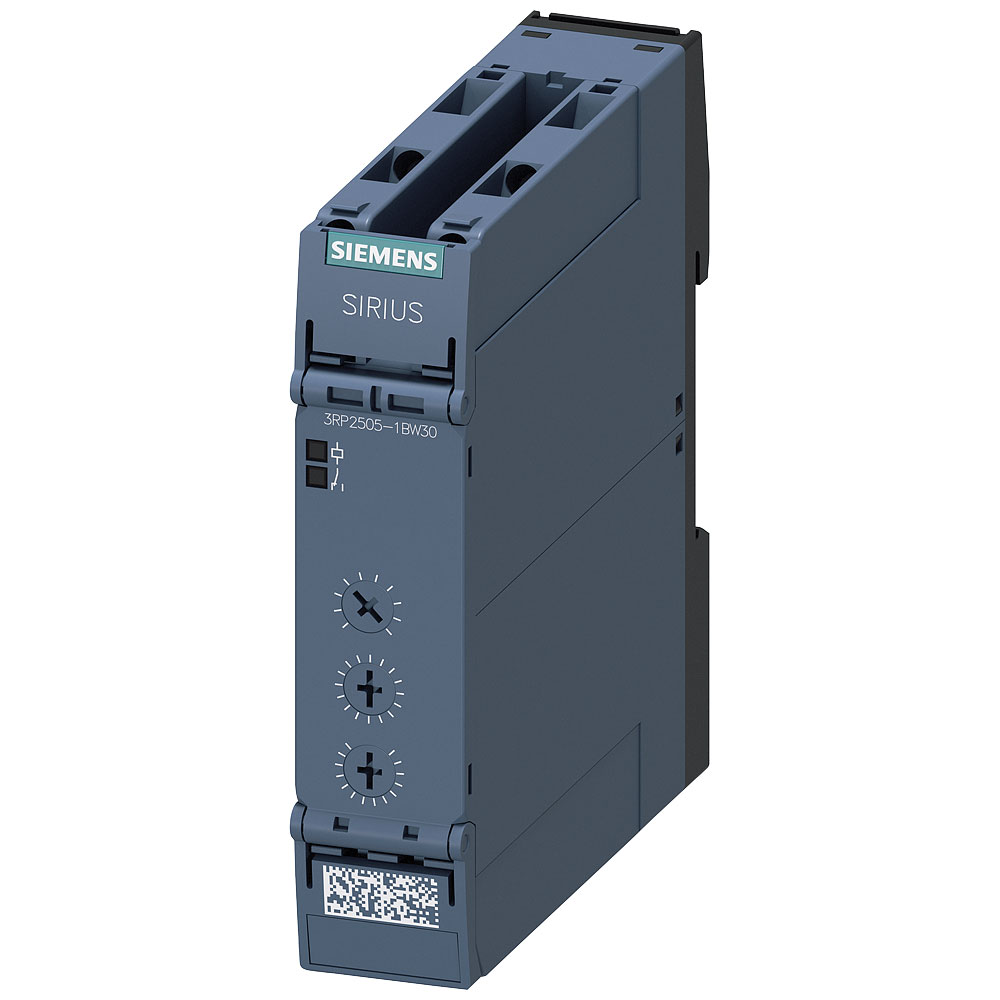

Siemens 3RP25051BW30 TDR inscription plate flat round milky black font

The Siemens 3RP2505-1BW30 is a multifunction time delay relay designed for DIN rail mounting. It features surge protection and is commonly used for applications such as controlling staircase lighting or implementing delay switches. This relay offers reliable performance for electrical distribution and automation tasks.

Type	TDR
AC input frequency	50 - 60Hz
AC input voltage	12 - 240V
Clock functio , tarting with pause, riable	FALSE
Clock functio , tarting with pulse, riable	FALSE
Complete with socket	N/A
Degree of protection (IP)	N/A
Depth	90mm
Dim (W x H x D)	22.5 x 100 x 90mm
Durability	1000 0000
Electrical lifespan	100000
Function delay on de-energization	FALSE
Function delay-on energization	TRUE
Function flashin , tarting with pause, fixed time	TRUE
Function flashin , tarting with pulse, fixed time	TRUE
Function floating contact on de-energization	TRUE
Function floating contact on energization	TRUE
Function pulse shaping	TRUE
Function star-delta	TRUE
Height	100mm
IP Rating	IP20
Material contact	N/A
Material of contact insert	N/A
Material of contact surface	N/A
Max. operating voltage	240V
Max. starting current	N/A
Maximum Temperature	+60°C
Min. operating voltage	12V
Min. temperature	-25°C
Misc Attribute	3RP2505-1BW30
Nominal Current	N/A
Number of output , delayed, ormally closed contact	0
Number of output , delayed, ormally open contact	0
Number of output , undelayed, hange-over contact	0
Number of output , undelayed, ormally closed contact	0
Number of output , undelayed, ormally open contact	0
Number of outputs, delayed, change-over contact	2
Operating Voltage	12 - 240V
Operating Voltage (DC)	N/A
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Output , reversible delayed/undelayed	TRUEs
Package depth	126mm
Package height	36mm
Package width	109mm
Pluggable on auxiliary contact block	FALSE
Product colour	Black
Rated control supply voltage AC 50 Hz	12 - 240V
Rated control supply voltage AC 60 Hz	12 - 240V
Rated control supply voltage DC	12 - 240V
Relay technology category according to IEC 61810-7	N/A
Remote operation possible	FALSE
Suitable as remote control	FALSE
Suitable for DIN rail (top hat rail) mounting	TRUE
Suitable for front mounting	FALSE
Time Range	0.05 - 360000s
Type of electric connection	Screw connection
Voltage type (operating voltage)	N/A
Voltage type for actuating	AC/DC
Weight	0.18
Width	22.5mm
With plug-in socket	TRUE
With semiconductor output	FALSE
