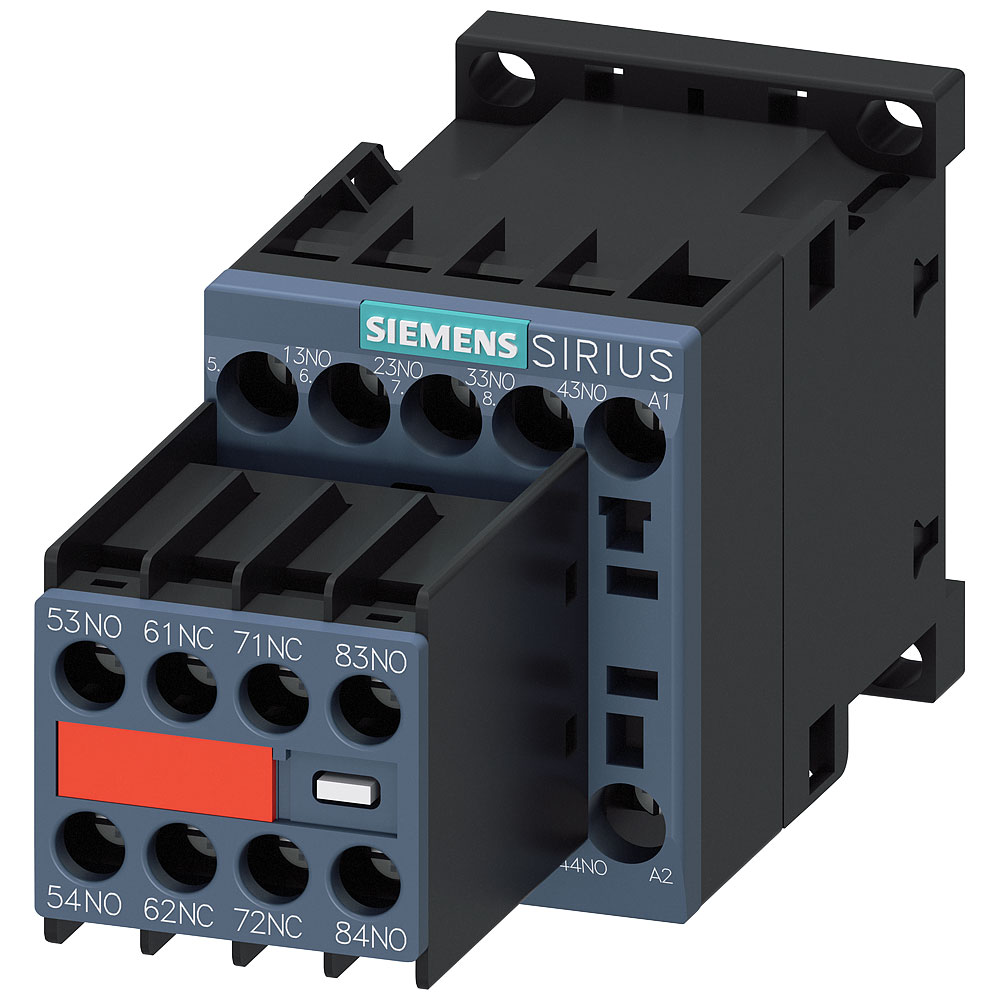

Siemens 3RH22621BB40 Auxiliary Contactor 3-pole 7A 48V DC spring-terminals

The Siemens 3RH2262-1BB40 auxiliary contactor is a robust electrical component designed for enhancing switching operations. It features a compact design with reliable performance, making it ideal for use in industrial control systems. Typical applications include supplementing main contactors in complex electrical circuits, providing added flexibility and control.

Type	Auxiliary contactor
Connection type auxiliary circuit	Screw connection
Contact Current Rating	40A
Depth	117mm
Dimensions	(W x H x D) 45 x 57.5 x 117 mm
Durability	1000 0000
Height	57.5mm
Interface	false
IP Rating	IP20
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RH2262-1BB40
Misc Attribute 2	S00
Mounting method	N/A
Number of auxiliary contacts as change-over contact	N/A
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally closed contact, delayed switching	N/A
Number of auxiliary contacts as normally open contact	6
Number of auxiliary contacts as normally open contact, leading	N/A
Number of Poles	3
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Operating voltage DC	N/A
Rated control supply voltage AC 50 Hz	N/A
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	24 - 24V
Rated operation current	N/A
Rated operation current Ie, 400 V	3A
Rated switch current	N/A
Suitable for manual operation	false
Voltage type (operating voltage)	N/A
Voltage type for actuating	DC
Width	45mm
With LED indication	false
