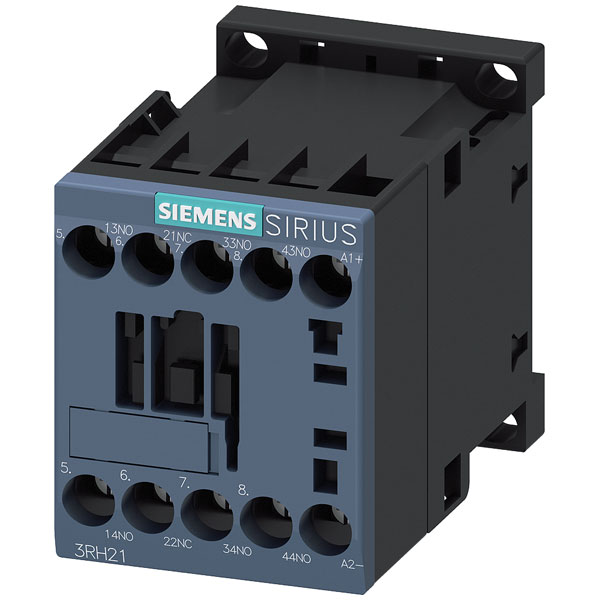

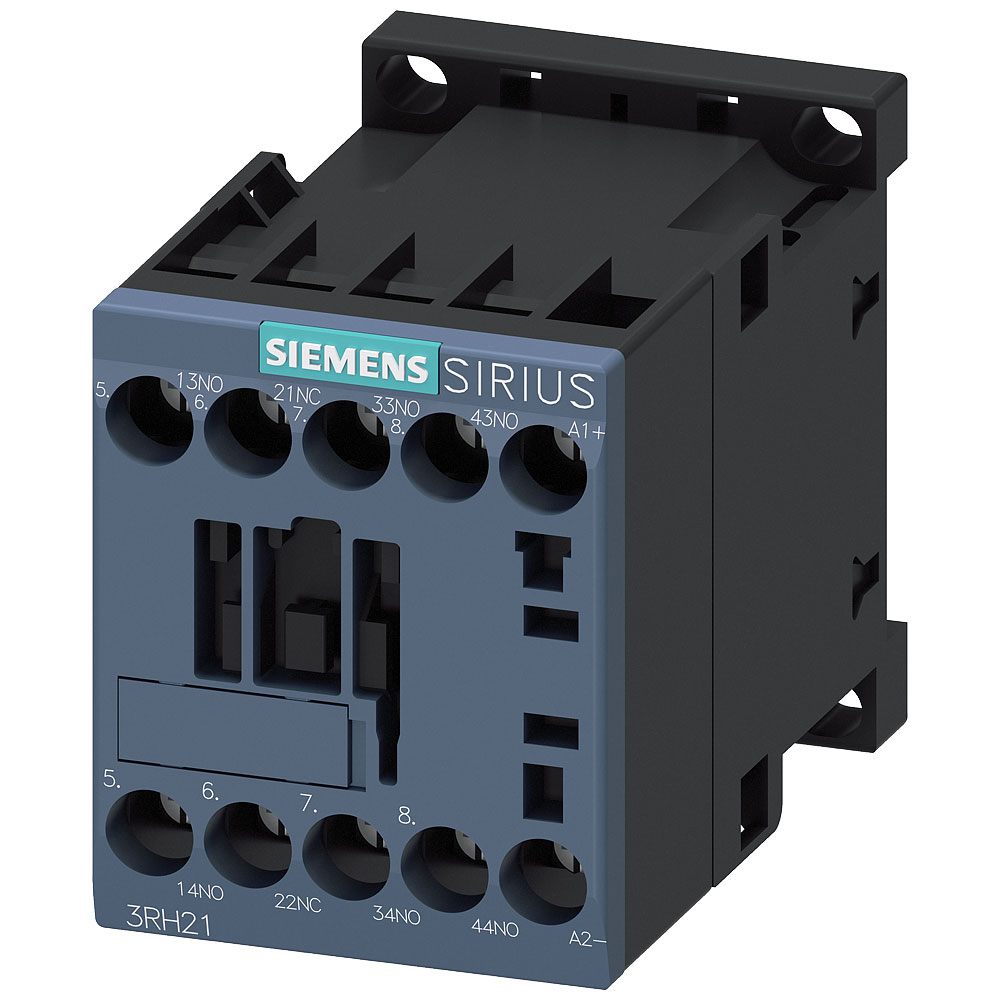

Siemens 3RH2131-1BB40 SIRIUS Auxiliary Contactor 3NO+1NC 24V DC 10A

The Siemens 3RH2131-1BB40 contactor is designed for use in low-voltage applications, offering a 24 V DC control voltage and a 10 A current rating. It is typically used in electrical circuits to control motors, lighting, and other equipment. Siemens ensures reliable performance and durability in industrial settings.

Type	Contactor
Coil Voltage	24V DC
Connection	Screw terminal
Connection type auxiliary circuit	Screw connection
Current load	10A
Depth	73mm
Dimensions	(W x H x D) 45 x 57.5 x 73 mm
Durability	3.0E7
Height	57.5mm
Interface	false
IP Rating	IP20
Max. temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RH2131-1BB40
Misc Attribute 2	S00
Mounting method	N/A
Mounting Style	DIN rail
Number of auxiliary contacts as change-over contact	N/A
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally closed contact, delayed switching	N/A
Number of auxiliary contacts as normally open contact	3
Number of auxiliary contacts as normally open contact, leading	N/A
Number of Poles	4
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Operating voltage DC	N/A
Rated control supply voltage AC 50 Hz	N/A
Rated control supply voltage AC 60 Hz	N/A
Rated control supply voltage DC	24 - 24V
Rated operation current	N/A
Rated operation current Ie, 400 V	3A
Rated switch current	N/A
Suitable for manual operation	false
Terminals	4-pin
Voltage type (operating voltage)	N/A
Voltage type for actuating	DC
Width	45mm
With LED indication	false
