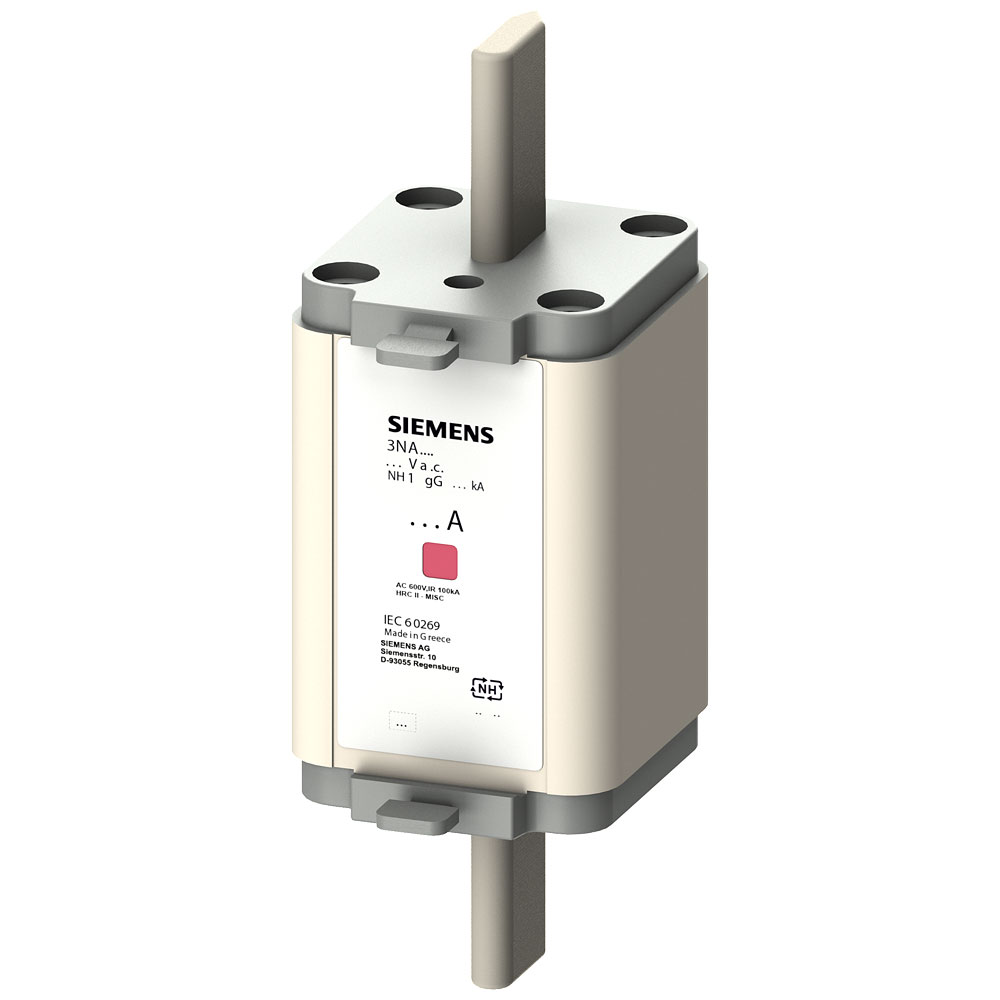

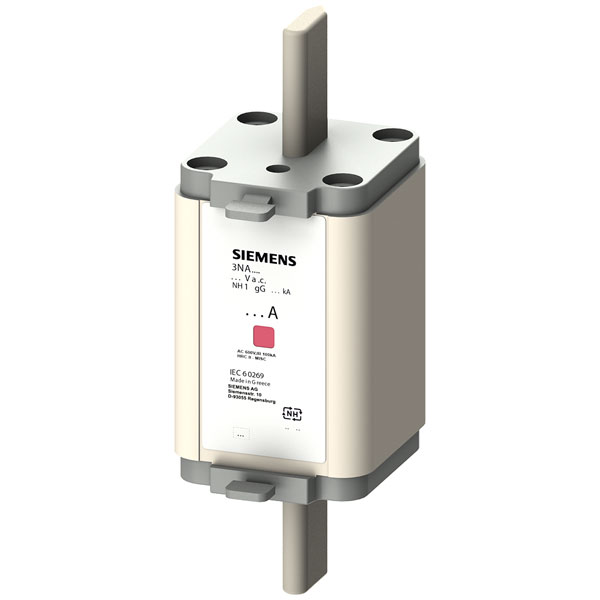

Siemens 3NA6114 Fuse Holder 35A 500V AC 4-pole phased-out product

The Siemens 3NA6114 is a fuse holder inset designed for low voltage applications, accommodating a fuse size of 1 with a rating of 35 A and 500 V. As a knife blade fuse (NH), it is suitable for industrial and commercial electrical installations. This product ensures safe and reliable protection in electrical circuits by holding the Diazed fuse link securely in place.

Type	Fuse holder inset
Mounting Type	Knife Blade
Current Rating	35A
Voltage Rating - AC	500V
Voltage Rating - DC	440
Termination	Knife Blade
Duty class	gG
Fuse construction type according to IEC 60269	N/A
Fuse Size	1
Insulated metal gripping lugs (IMGL)	true
Nominal Voltage	500V
Power loss at rated current	3.2
Rated switching capacity	120A
Rated switching capacity AC	N/A
Rated switching capacity DC	N/A
Rated voltage AC	500V
Rated voltage DC	440V
Switch-off Capacity	120kA
Type of fuse status indicator	Combination fuse status indicator
Utilization category according to IEC 60269	gL/gG (cable protection/equipment protection)
Voltage type	AC/DC
Width	30mm
