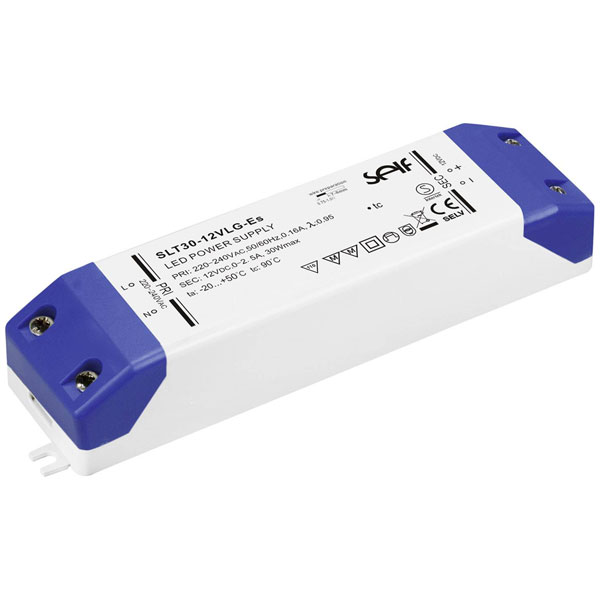

Self Electronics SLT30-12VLG-ES LED Driver 30W 12V Surge Protection Not Dimmable

Self Electronics
Order Code:

10-5690

Brand: Self Electronics MPN: SLT30-12VLG-ES EAN-13: 4021087039383
Qty Unit Price (Ex VAT)
1+ £16.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
33 in stock, despatched in 4 working days

The Self Electronics SLT30-12VLG-ES LED driver provides a constant voltage of 12.0 V DC with a power output of 30 W, approved for use on furniture. This non-dimmable driver features surge protection and overvoltage safeguards, ensuring reliable performance. It is ideal for powering LED strips and other compatible LED lighting applications.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 165.00 x 40.00 x 30.00 mm
Height 30.00mm
Input voltage (max.) 264V AC
IP Rating IP20
Length 165.00mm
Max. output current 2.5A
Max. power 30W
Max. temperature 50°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Synchronised
Number of Inputs 1
Number of Outputs 1
Operating Current 200mA
Operating Voltage 230V AC
Output current (max.) - rounded 2.5A
Output current (min.) 0A
Output voltage (max.) 12.0V DC
Output voltage (min.) 12.0V DC
Power (min.) 0W
Power range 0 up to 30 W
Test mark CE; SELV,; MM; Intertek; CCC
Width 40.00mm
