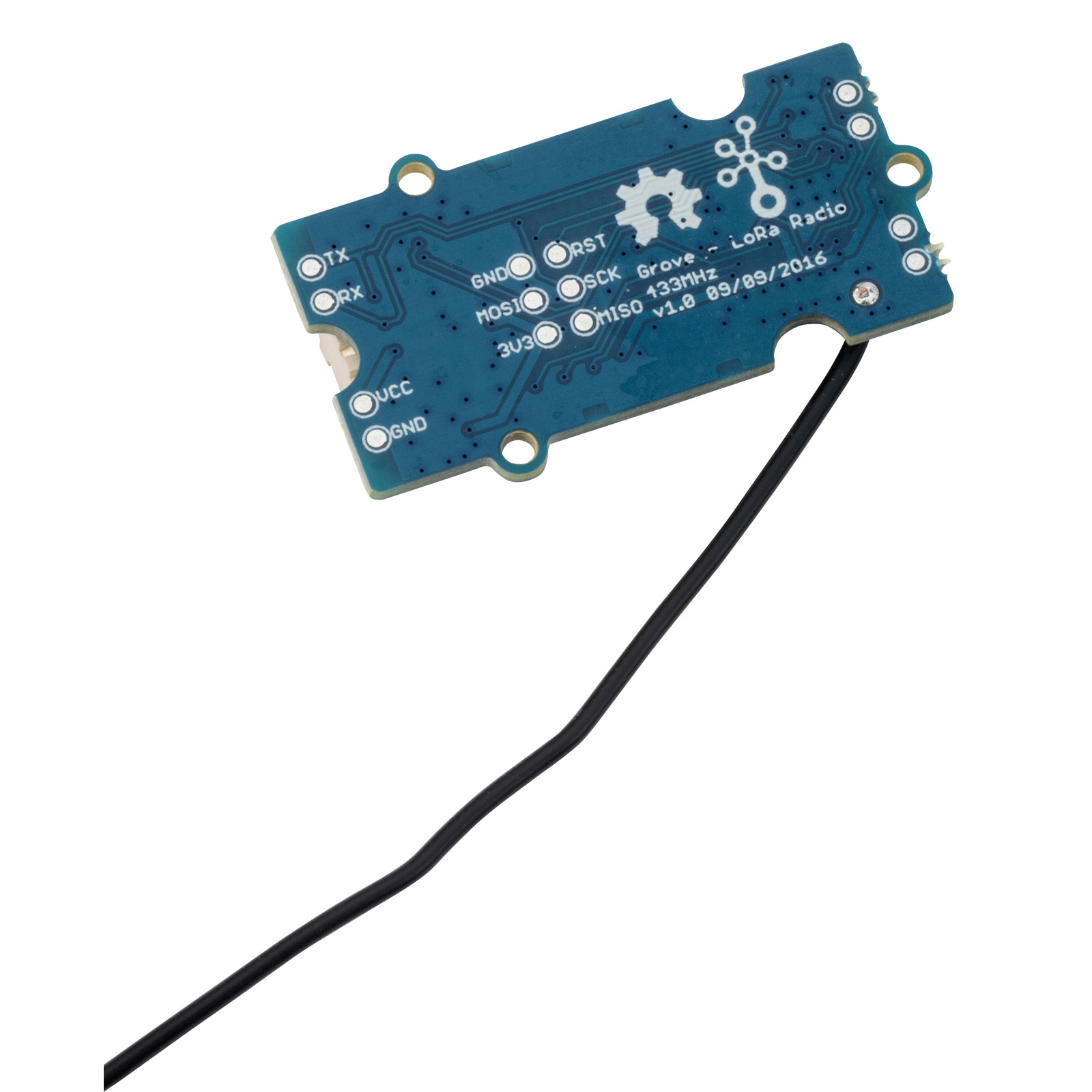

Seeed 113060007 Grove - LoRa Radio 433MHz

Seeed 113060007 Grove - LoRa Radio 433MHz is RFM98, which is a transceiver features the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove - LoRa Radio 433MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module.

• Using RFM95 module based on SX1276 LoRa®
• ~28mA (Avg) @+20dBm continuous transmit
• ~8.4mA(Avg)@standby mode
• ~20mA (Avg) @receive mode, BW-500kHz
• Simple wire antenna or MHF Connector for external high gain antenna
• +20dBm - 100 mW Power Output Capability
• Dimensions: 40mm x20mm x15mm
• Weight: G.W 11g
• Battery: Excluded
• Inputting voltage: 5V/3.3V
• Working Temperature: -20 – 70℃
• Communication Interface: UART
• Working Frequency: 433MHz

Type	Grove - LoRa Radio 433MHz
