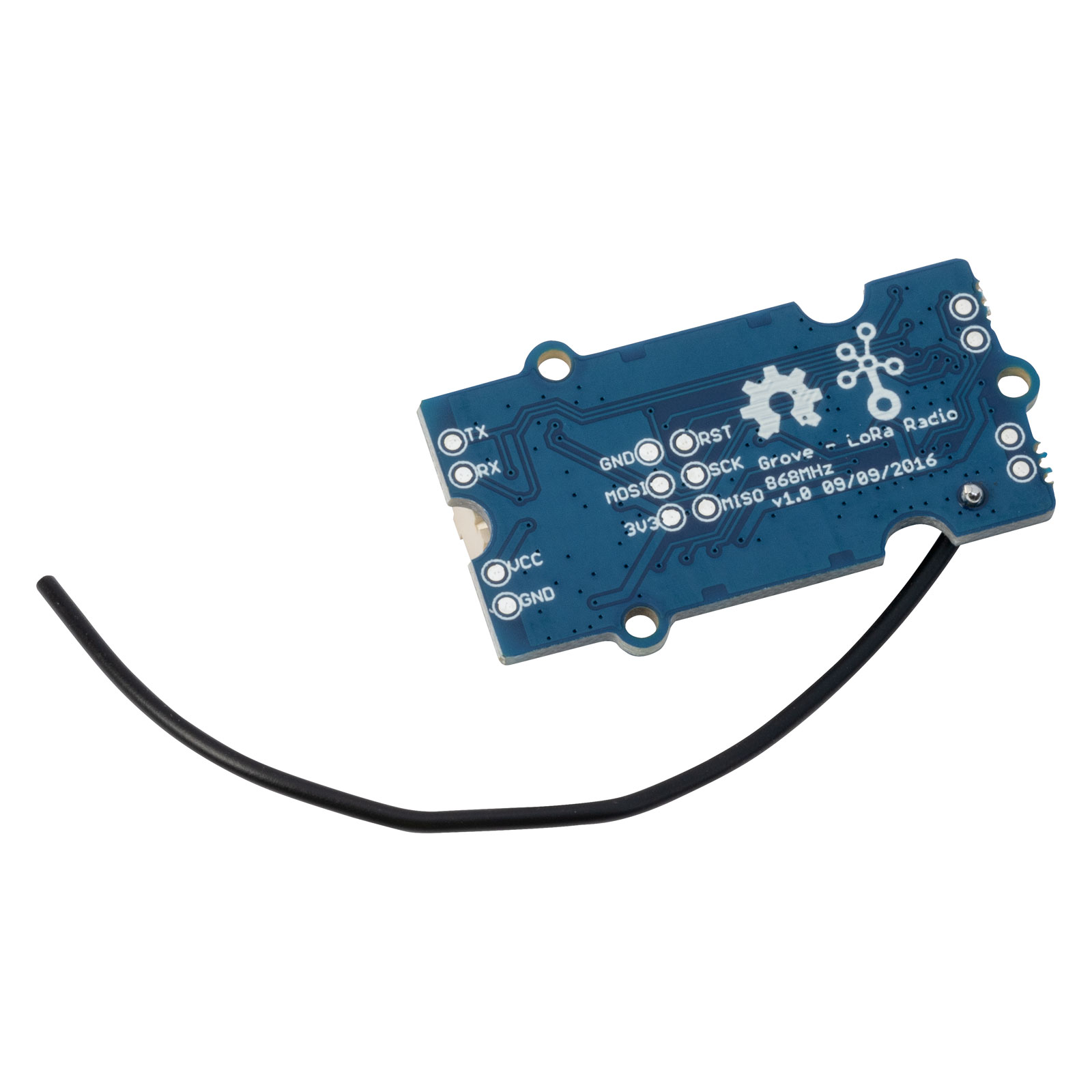

Seeed 113060006 Grove - LoRa Radio 868MHz

Seeed 113060006 Grove - LoRa Radio 868MHz is a transceiver which features the long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove - Long Range Radio 868MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module.

• Using RFM95 module based on SX1276 Wio for Long Range Application
• Inputting voltage: 5V/3.3V
• ~28mA (Avg) @+20dBm continuous transmit
• ~8.4mA (Avg)@standby mode
• ~20mA( Avg) @receive mode, BW-500kHz
• Working Temperature: -20 – 70℃
• Communication Interface: UART
• Simple wire antenna or MHF Connector for external high gain antenna
• Working Frequency: 868MHz
• +20dBm - 100 mW Power Output Capability
• Size: 20*40mm
• Dimensions: 135mm x85mm x10mm
• Weight: G.W 11g
• Battery: Excluded

Type	Grove - LoRa Radio 868MHz
Dimensions	135mm x85mm x10mm
