Seeed 101020172 Grove - Line Finder v1.1

Seeed 101020172 Grove - Line Finder v1.1 is designed for a line-following robot. It has an IR emitting LED and an IR-sensitive phototransistor which can output a digital signal to a microcontroller so that the robot can follow a black line on a white background or vice versa.

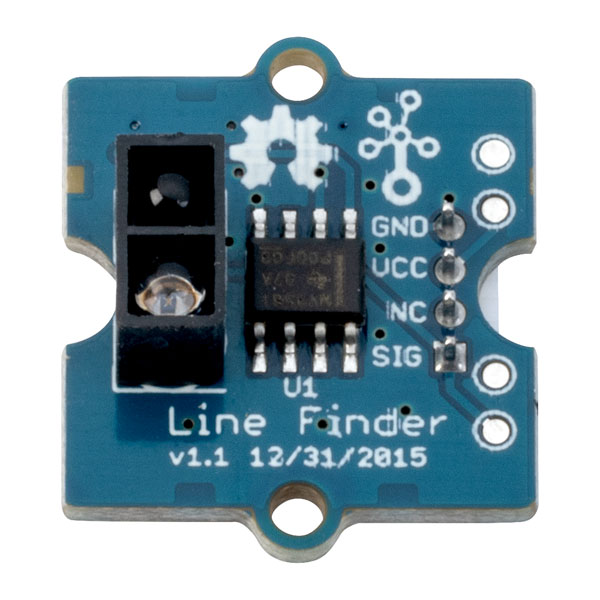

The eye-like sensors on the board are actually IR emitting LED and sensitive phototransistor. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.

• Dimensions: 24.2mm x20mm x10.8mm
• Weight: G.W 8g
• Battery: Excluded
• Power supply: 5V DC
• Digital output mode: TTL (High when black is detected, Low when white is detected)
• Connector: 4 pin Buckled Grove interface
• Comparator: MV358
• Photo reflective diode: RS-06WD
