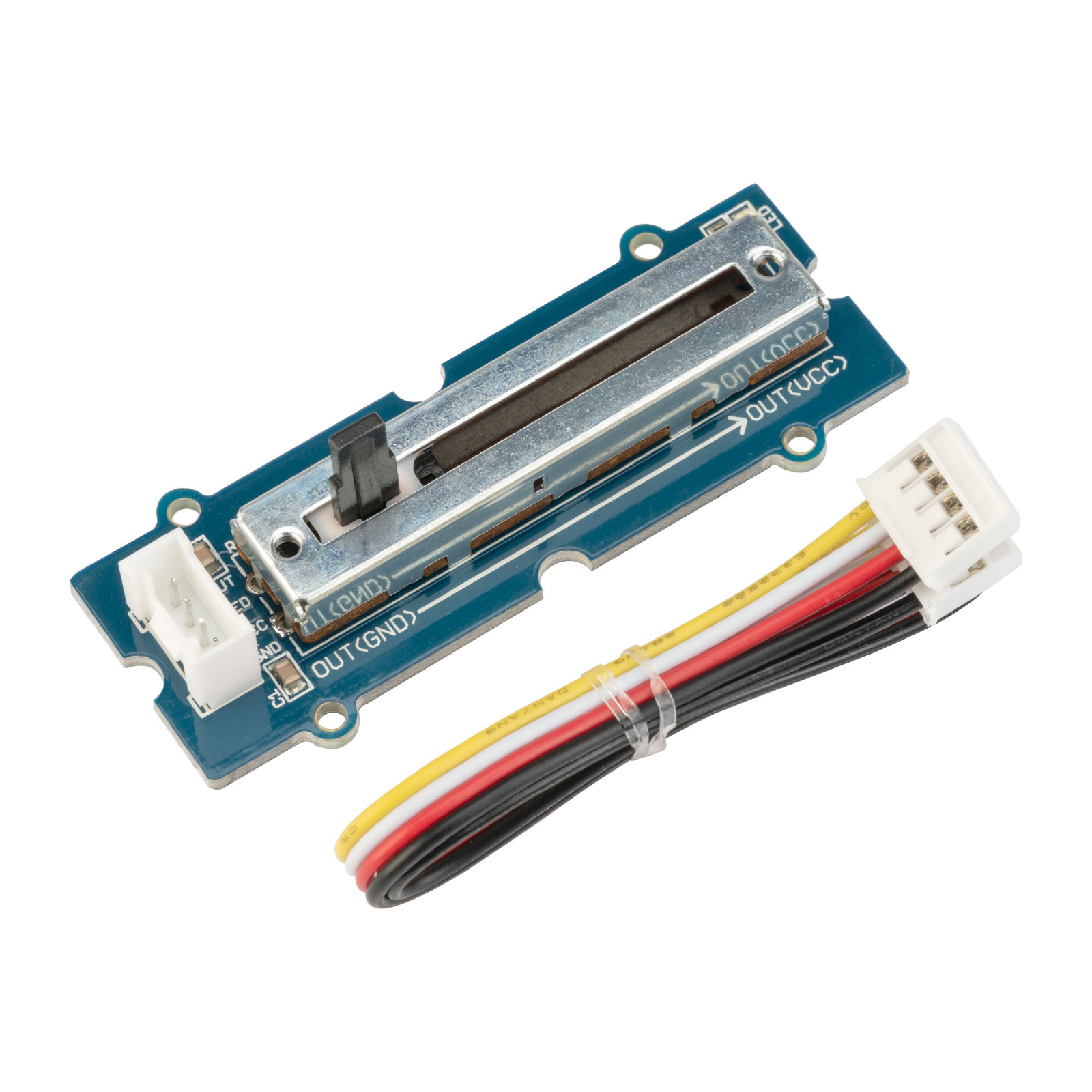

Seeed 101020036 Grove - Slide Potentiometer

Seeed 101020036 Grove - Slide Potentiometer module incorporates a linear variable resistor with a maximum resistance of 10KΩ. When you move the slider from one side to the other, its output voltage will range from 0 V to the Vcc you apply. It connects to the other Grove modules through a standard 4-Pin Grove Cable.
Three of the pins are connected to OUT (Pin 1), Vcc (Pin 3) and GND (Pin 4), while the fourth pin (Pin 2) is connected to a on-board green indicator LED. The LED is used to visually represent the resistance change on the potentiometer.

• Excellent Durability: Up to 15,000 cycles rotational life, examinations that stand up to time.
• Linear resistance taper: Smoother parameters output to the board during adjustment
• Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications.
• Dimension: 24mm x60mm
• Weight: G.W 13g
• Battery: Exclude
• Voltage (DC): 3.3V/5v, 30V MAX.
• Current: 30mA MAX.
• Net Weight: 8.6g
• Rotational life: >15,000 cycles
• Total resistance: 10KΩ
• Stroke length: 30mm
• Total resistance tolerance: +/- 20%

Type	Grove - Slide Potentiometer
