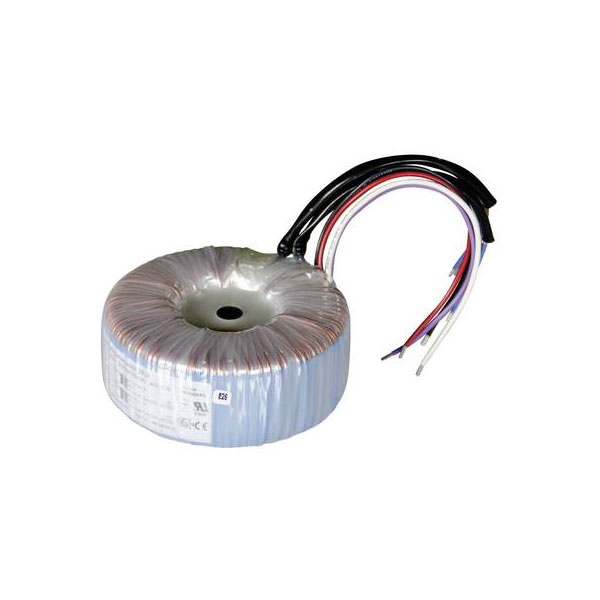

Sedlbauer 825061 Toroidal Transformer 2x115V AC 500VA 2.18A Low Magnetic

The Sedlbauer 825061 toroidal core transformer features dual input and output voltage ratings of 2 x 115 V AC and can handle up to 500 VA with a current capacity of 2.18 A. This transformer is designed for use in automation and halogen lighting systems where efficiency and compact design are desired. Scalability and ease of integration make it ideal for various industrial applications.

Type	Toroidal core transformer
Primary Voltage	2 x 115 V
Secondary Voltage	2 x 115 V AC
Power Rating	500VA
Number of Outputs	2
Cable Length	20.00cm
Connection	Open end cable
Design Type	Remaining hole casting (pressure-free mounting)
Diameter	156mm
Dimensions	(Ø x H) 156 mm x 62 mm
Frequency	50 - 60Hz
Height	62mm
Insulation class	B
Max. ambient temperature	+60°C
Number of Inputs	2
Output Current	2.18A
Protection Class	II (prepared)
Standards	IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test Voltage	4400V
Weight	4.78kg
