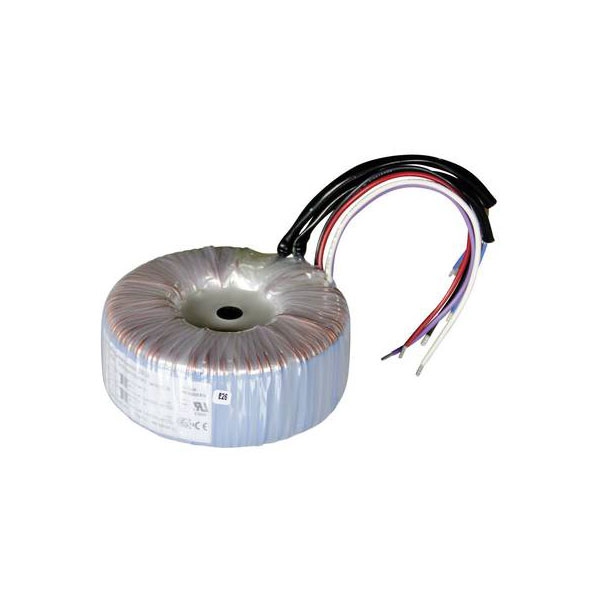

Sedlbauer 825054 Toroidal Transformer 2x115V AC 300VA Low Magnetic Field

Sedlbauer
Standard range
Order Code:

12-9207

Brand: Sedlbauer MPN: 825054 EAN-13: 2050001588074
Qty Unit Price (Ex VAT)
1+ £124.45
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

The Sedlbauer 825054 is a toroidal core transformer designed with dual 115 V inputs and outputs, delivering a power rating of 300 VA and a current of 1.31 A. Manufactured by Sedlbauer, this transformer is ideal for automation systems and applications requiring efficient power conversion. Typical applications include use in halogen lighting and other low-voltage environments.
Type Toroidal core transformer
(Ø) 130mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 130 mm x 60 mm
Frequency 50 - 60Hz
Height 60mm
Input voltage 115V
Input voltage (number x voltage) 2 x 115 V
Insulation class B
Max. ambient temperature +60°C
Misc Attribute 825054
No. of inputs 2
No. of outputs 2
Output Current 1.31A
Output voltage 115V AC
Output voltage (number x voltage) 2 x 115 V AC
Power 300VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 3.07kg
