Sedlbauer 825050 Toroidal Transformer 300VA 2x115V/2x12V Low Magnetic

Sedlbauer
Standard range
Order Code:

12-9205

Brand: Sedlbauer MPN: 825050 EAN-13: 2050001588036
Qty Unit Price (Ex VAT)
1+ £113.17
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

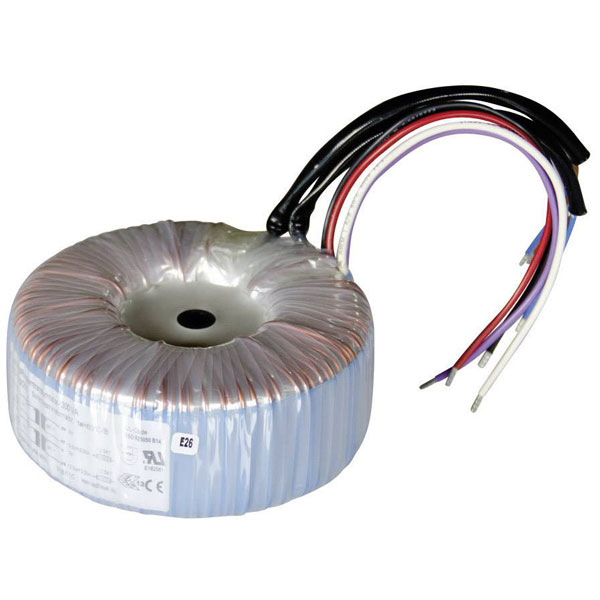

The Sedlbauer 825050 is a toroidal core transformer with inputs of 2 x 115 V and outputs of 2 x 12 V AC, delivering a power capacity of 300 VA and a current of 12.50 A. This transformer is well-suited for automation and halogen lighting applications due to its efficient energy transfer and compact design. It is ideal for use in systems that require reliable voltage transformation and minimal electromagnetic interference.
Type Toroidal core transformer
(Ø) 130mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 130 mm x 60 mm
Frequency 50 - 60Hz
Height 60mm
Input voltage 115V
Input voltage (number x voltage) 2 x 115 V
Insulation class B
Max. ambient temperature +60°C
No. of inputs 2
No. of outputs 2
Output Current 12.50A
Output voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 300VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 3.07kg
