Sedlbauer 825039 Toroidal Transformer 2x115V 2x15V AC 200VA 6.67A

Sedlbauer 825039 Toroidal Transformer 2x115V 2x15V AC 200VA 6.67A

Sedlbauer
Order Code:

12-9202

Brand: Sedlbauer MPN: 825039 EAN-13: 2050001587978

Discontinued

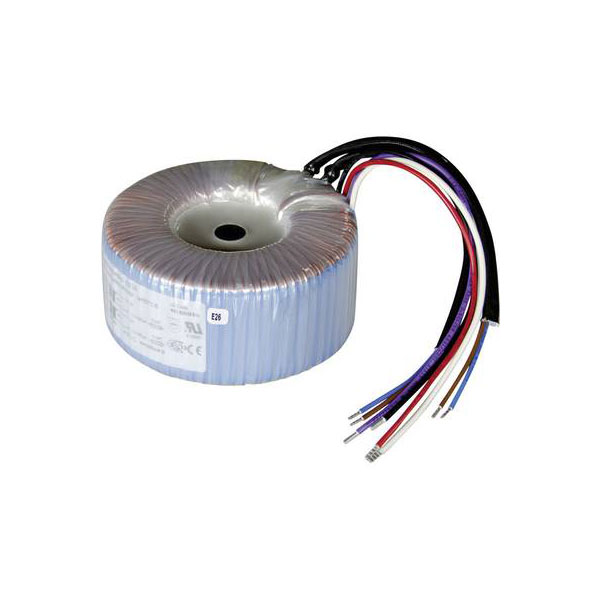

The Sedlbauer 825039 is a toroidal core transformer designed for energy-efficient performance with dual 115 V primary and dual 15 V AC secondary outputs, providing a total power capacity of 200 VA and a maximum current of 6.67 A. It is commonly used in automation and lighting applications, particularly for powering halogen lights. This transformer is valued for its compact size and reduced electromagnetic interference.
Type Toroidal core transformer
Power Rating 200VA
Number of Outputs 2
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Diameter 115mm
Dimensions (Ø x H) 115 mm x 62 mm
Frequency 50 - 60Hz
Height 62mm
Input Voltage 2 x 115 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 2
Output Current 6.67A
Output Voltage 2 x 15 V AC
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
