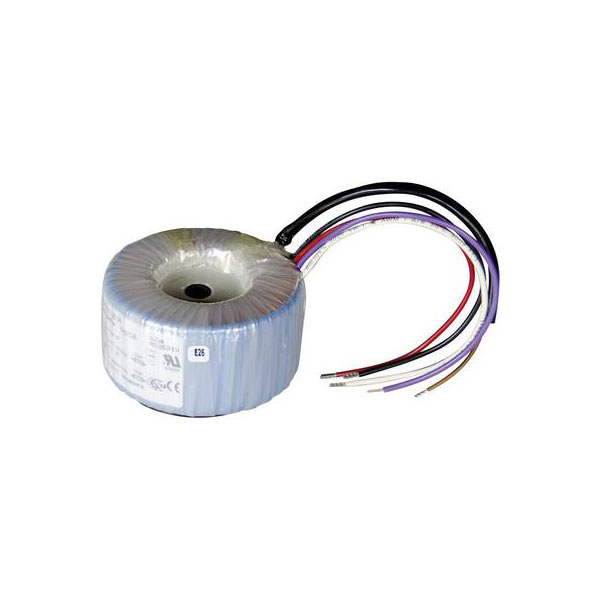

Sedlbauer 825028 Toroidal Transformer 230V/18V 100VA Galvanic Separation

Sedlbauer
Order Code:

12-9199

Brand: Sedlbauer MPN: 825028 EAN-13: 2050001587893
Qty Unit Price (Ex VAT)
1+ £62.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The Sedlbauer toroidal core transformer 825028 features a primary voltage of 230 V and dual 18 V AC secondaries, delivering 100 VA with a current of 2.78 A. It is designed for automation systems and can also function as a halogen transformer. This transformer is ideal for applications requiring efficient power transfer and low electromagnetic interference.
Type Toroidal core transformer
(Ø) 90mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 90 mm x 55 mm
Frequency 50 - 60Hz
Height 55mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 2.78A
Output Voltage 18V AC
Output voltage (number x voltage) 2 x 18 V AC
Power 100VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
