Sedlbauer 825027 Toroidal Transformer 230V 15V AC 100VA 3.34A

Sedlbauer
Standard range
Order Code:

12-9198

Brand: Sedlbauer MPN: 825027 EAN-13: 2050001587886
Qty Unit Price (Ex VAT)
1+ £56.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

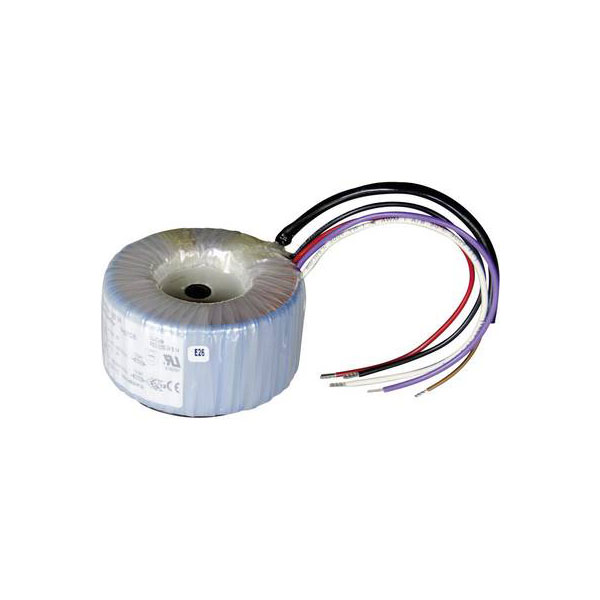

The Sedlbauer 825027 toroidal core transformer features a primary voltage of 1 x 230 V and a secondary voltage of 2 x 15 V AC, with a power rating of 100 VA and a current of 3.34 A. This transformer is commonly used in automation and halogen lighting applications due to its efficient design. The toroidal core helps minimise electromagnetic interference and enhances performance stability.
Type Toroidal core transformer
(Ø) 90mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 90 mm x 55 mm
Frequency 50 - 60Hz
Height 55mm
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
No. of inputs 1
No. of outputs 2
Output Current 3.34A
Output voltage 15V AC
Output voltage (number x voltage) 2 x 15 V AC
Power 100VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 1.27kg
