Sedlbauer 825024 Toroidal Transformer 230V-6V 100VA 8.33A Temp Switch

Sedlbauer
Standard range
Order Code:

12-9195

Brand: Sedlbauer MPN: 825024 EAN-13: 2050001587848
Qty Unit Price (Ex VAT)
1+ £62.07
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

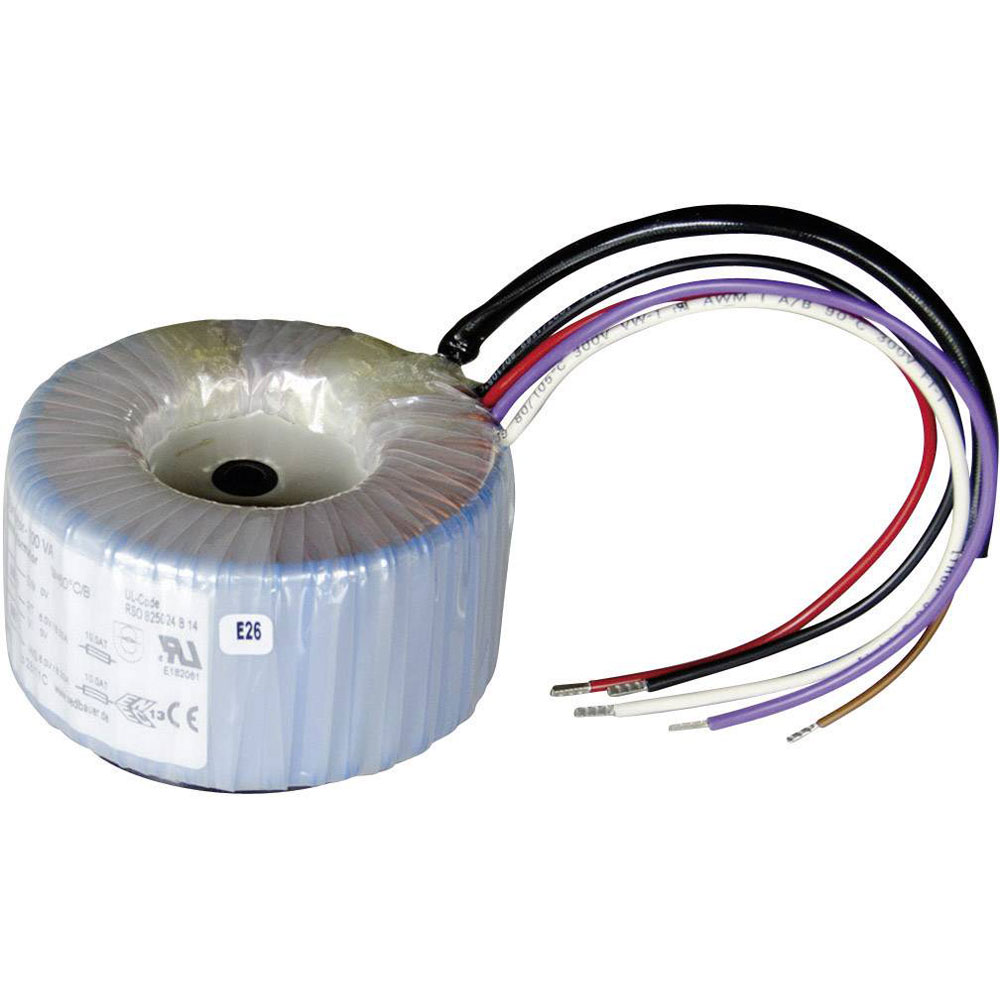

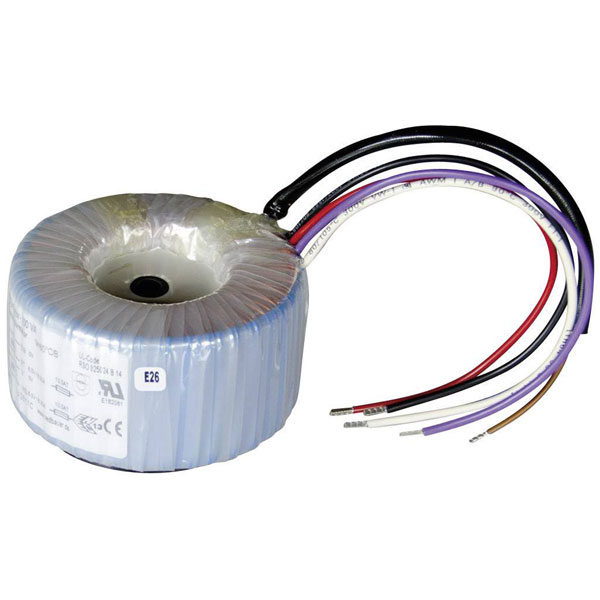

The Sedlbauer 825024 toroidal core transformer operates on 1 x 230 V input and provides 2 x 6 V AC output, with a power rating of 100 VA and a current of 8.33 A. Its design makes it suitable for automation and halogen lighting applications. The transformer is known for its efficiency and reduced electromagnetic interference.
Type Toroidal core transformer
(Ø) 90mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 90 mm x 55 mm
Frequency 50 - 60Hz
Height 55mm
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
No. of inputs 1
No. of outputs 2
Output Current 8.33A
Output voltage 6V AC
Output voltage (number x voltage) 2 x 6 V AC
Power 100VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 1.27kg
