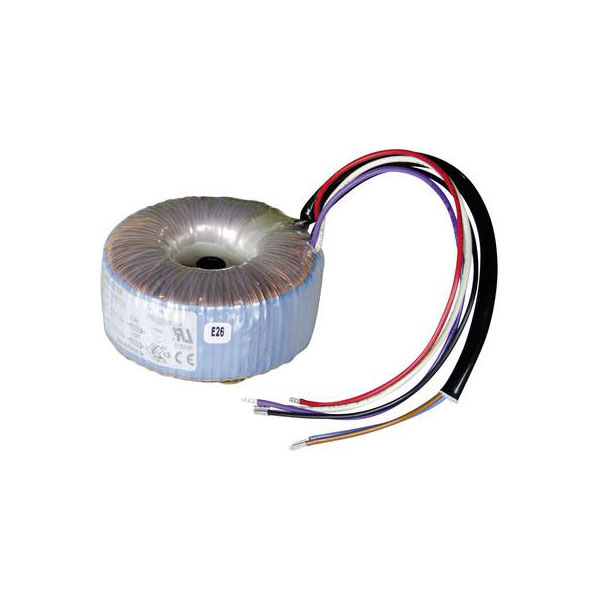

Sedlbauer 825022 Toroidal Transformer 230V 2x18V AC 75VA Low Magnetic Field

Sedlbauer
Standard range
Order Code:

12-9193

Brand: Sedlbauer MPN: 825022 EAN-13: 2050001587862
Qty Unit Price (Ex VAT)
1+ £52.15
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

The Sedlbauer toroidal core transformer, model 825022, is designed for automation and halogen lighting applications. It features an input of 230 V and outputs of 2 x 18 V AC, with a power rating of 75 VA and a current of 2.08 A. Its compact and efficient design is suitable for a variety of electrical systems requiring reliable power conversion.
Type Toroidal core transformer
(Ø) 92mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 92 mm x 40 mm
Frequency 50 - 60Hz
Height 40mm
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Misc Attribute 825022
No. of inputs 1
No. of outputs 2
Output Current 2.08A
Output voltage 18V AC
Output voltage (number x voltage) 2 x 18 V AC
Power 75VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 0.92kg
