Sedlbauer 825020 Toroidal Transformer 230V, 2x12V, 75VA, Low Magnetic Field

Sedlbauer
Order Code:

12-9191

Brand: Sedlbauer MPN: 825020 EAN-13: 2050001587817
Qty Unit Price (Ex VAT)
1+ £52.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

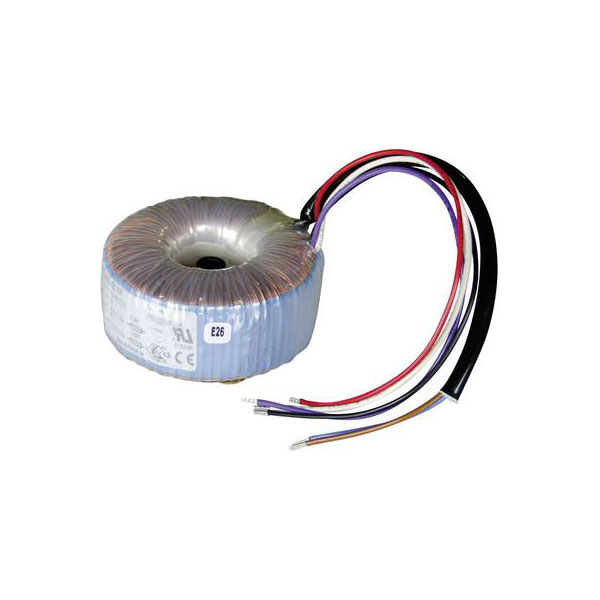

The Sedlbauer 825020 toroidal core transformer features a primary voltage of 230 V and delivers dual 12 V AC outputs with a total power rating of 75 VA and a current of 3.13 A. Its toroidal design ensures efficient operation with reduced electromagnetic interference. This transformer is commonly used in automation and halogen lighting applications.
Type Toroidal core transformer
(Ø) 92mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 92 mm x 40 mm
Frequency 50 - 60Hz
Height 40mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 3.13A
Output Voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 75VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
