Sedlbauer 825015 Toroidal Transformer 230V 15V 50VA 1.67A Galvanic Separation

Sedlbauer
Standard range
Order Code:

12-9190

Brand: Sedlbauer MPN: 825015 EAN-13: 2050001587787
Qty Unit Price (Ex VAT)
1+ £37.72
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

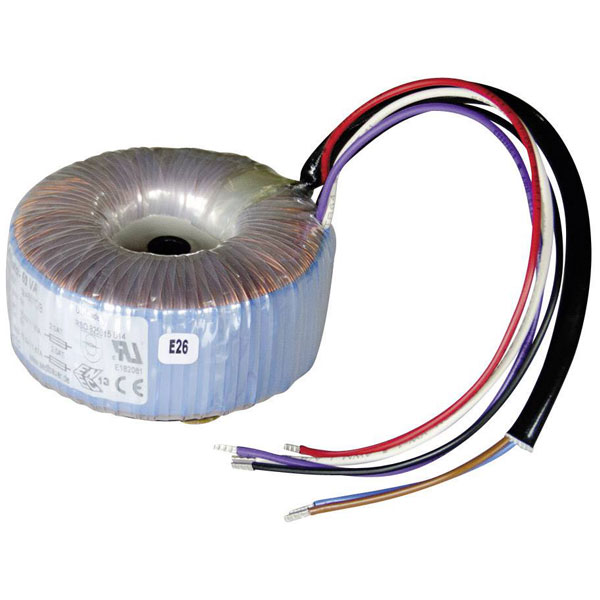

The Sedlbauer 825015 is a toroidal core transformer designed for use in automation and halogen lighting systems. It features primary voltage of 230 V and dual secondary outputs of 15 V AC, delivering a total power capacity of 50 VA and current rating of 1.67 A. This transformer is ideal for applications requiring efficient energy transfer and compact design.
Type Toroidal core transformer
(Ø) 78mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 78 mm x 42 mm
Frequency 50 - 60Hz
Height 42mm
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Misc Attribute 825015
No. of inputs 1
No. of outputs 2
Output Current 1.67A
Output voltage 15V AC
Output voltage (number x voltage) 2 x 15 V AC
Power 50VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 0.68kg
