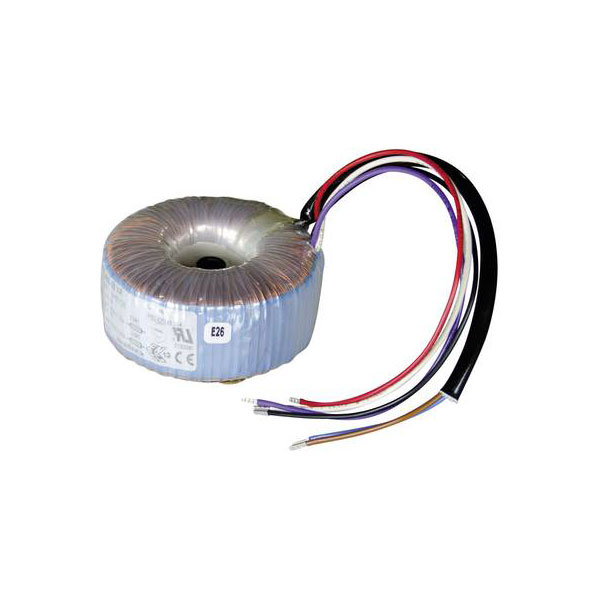

Sedlbauer 825014 Toroidal Transformer 230V, 2x12V, 50VA, Low Magnetic Field

Sedlbauer
Standard range
Order Code:

12-9189

Brand: Sedlbauer MPN: 825014 EAN-13: 2050001587770
Qty Unit Price (Ex VAT)
1+ £41.23
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Sedlbauer 825014 toroidal core transformer features a primary voltage of 230 V and dual secondary voltages of 12 V AC, delivering a power rating of 50 VA with a current of 2.08 A. This halogen transformer is ideal for automation applications, offering efficient and compact power conversion. Its design makes it particularly suitable for low-voltage lighting systems and other electrical devices requiring stable AC power delivery.
Type Toroidal core transformer
(Ø) 78mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 78 mm x 42 mm
Frequency 50 - 60Hz
Height 42mm
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
No. of inputs 1
No. of outputs 2
Output Current 2.08A
Output voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 50VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 0.68kg
