Sedlbauer 825013 Toroidal Core Transformer 230V to 2x9V AC 50VA 2.78A

Sedlbauer
Standard range
Order Code:

12-9188

Brand: Sedlbauer MPN: 825013 EAN-13: 2050001587763
Qty Unit Price (Ex VAT)
1+ £33.87
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
13 in stock, despatched in 4 working days

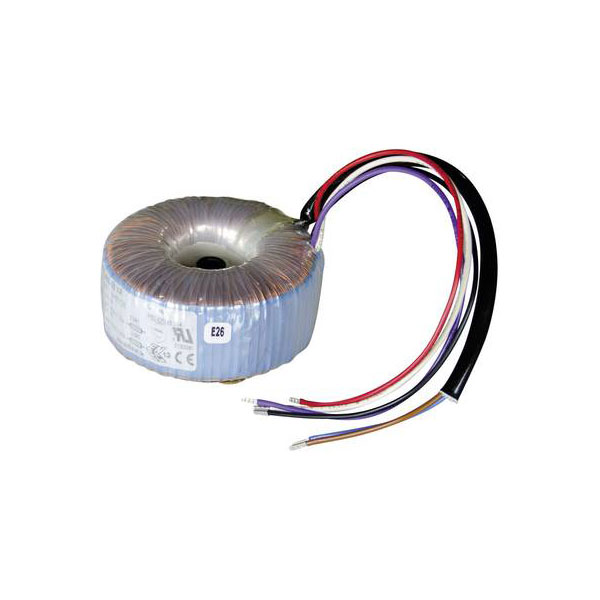

Manufactured by Sedlbauer, the 825013 toroidal core transformer features a primary voltage of 230 V and dual secondary outputs of 9 V AC, with a power capacity of 50 VA and a maximum current of 2.78 A. Its toroidal design ensures efficient performance, reduced electromagnetic interference, and compact size. Commonly used in automation systems and as a halogen transformer, it is ideal for applications requiring reliable and stable AC power.
Type Toroidal core transformer
(Ø) 78mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 78 mm x 42 mm
Frequency 50 - 60Hz
Height 42mm
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
No. of inputs 1
No. of outputs 2
Output Current 2.78A
Output voltage 9V AC
Output voltage (number x voltage) 2 x 9 V AC
Power 50VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 0.68kg
