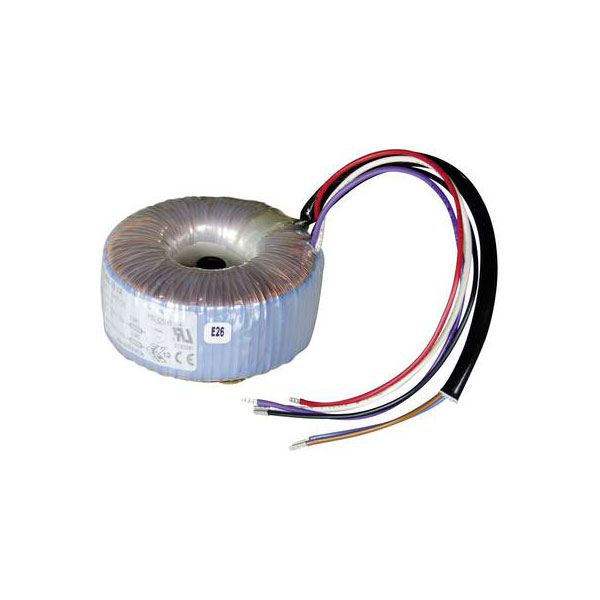

Sedlbauer 825012 Toroidal Transformer 230V 2x6V AC 50VA 4.17A

Sedlbauer manufactures the toroidal core transformer with model number 825012, delivering 50 VA with an input of 230 V and dual 6 V AC outputs. Key features include its compact, efficient design suitable for automation systems or as a halogen transformer. This transformer is ideal for applications requiring reliable power distribution and minimal electromagnetic interference.

Type	Toroidal core transformer
Primary Voltage	1 x 230 V
Power Rating	50VA
Number of Outputs	2
Cable Length	20.00cm
Connection	Open end cable
Design Type	Remaining hole casting (pressure-free mounting)
Diameter	78mm
Dimensions	(Ø x H) 78 mm x 42 mm
Frequency	50 - 60Hz
Height	42mm
Insulation class	B
Max. ambient temperature	+60°C
Number of Inputs	1
Output Current	4.17A
Protection Class	II (prepared)
Secondary Voltage	2 x 6 V AC
Standards	IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test Voltage	4400V
Weight	0.68kg
