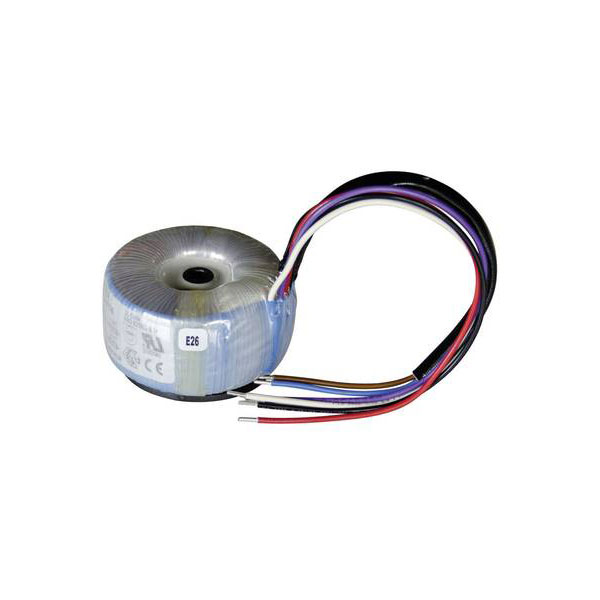

Sedlbauer 825008 Toroidal Transformer 230V 2x12V 30VA Low Magnetic Field

Sedlbauer
Order Code:

12-9185

Brand: Sedlbauer MPN: 825008 EAN-13: 2050001587725
Qty Unit Price (Ex VAT)
1+ £39.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Sedlbauer 825008 is a toroidal core transformer designed for providing power conversion with an input of 230 V and dual 12 V AC outputs. With a capacity of 30 VA and a current rating of 1.25 A, it is ideal for automation and halogen lighting applications. Its compact and efficient design makes it suitable for various uses where space and reliability are crucial.
Type Toroidal core transformer
(Ø) 69mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 69 mm x 39 mm
Frequency 50 - 60Hz
Height 39mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 1.25A
Output Voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 30VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
