Sedlbauer 825007 Toroidal Transformer 230V 2x9V 30VA 1.67A Temp Switch

Sedlbauer
Order Code:

12-9184

Brand: Sedlbauer MPN: 825007 EAN-13: 2050001587718
Qty Unit Price (Ex VAT)
1+ £38.79
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

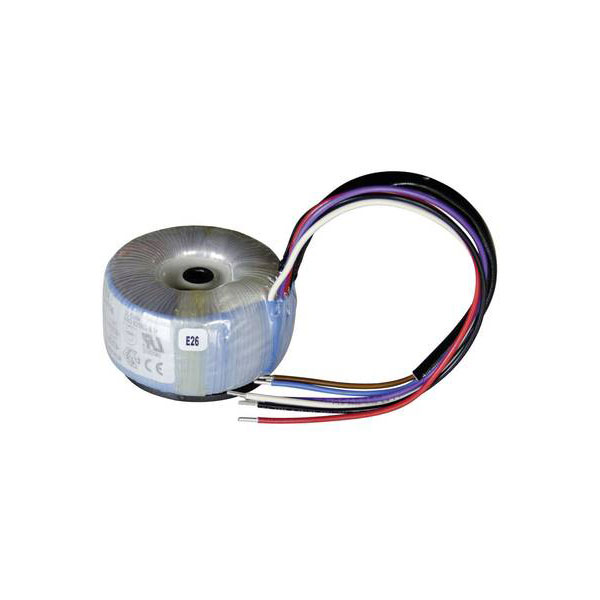

Manufactured by Sedlbauer, the 825007 toroidal core transformer delivers 230 V input with dual 9 V AC outputs, offering 30 VA power and 1.67 A current. Its compact toroidal design is ideal for efficient energy transmission with minimal electromagnetic interference. Commonly used in automation systems and as a halogen transformer, it ensures reliable electrical connectivity and performance.
Type Toroidal core transformer
(Ø) 69mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 69 mm x 39 mm
Frequency 50 - 60Hz
Height 39mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 1.67A
Output Voltage 9V AC
Output voltage (number x voltage) 2 x 9 V AC
Power 30VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
