Sedlbauer 825004 Toroidal Transformer 230V, 2x18V, 15VA, Galvanic Separation

Sedlbauer
Order Code:

12-9183

Brand: Sedlbauer MPN: 825004 EAN-13: 2050001587701
Qty Unit Price (Ex VAT)
1+ £34.71
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

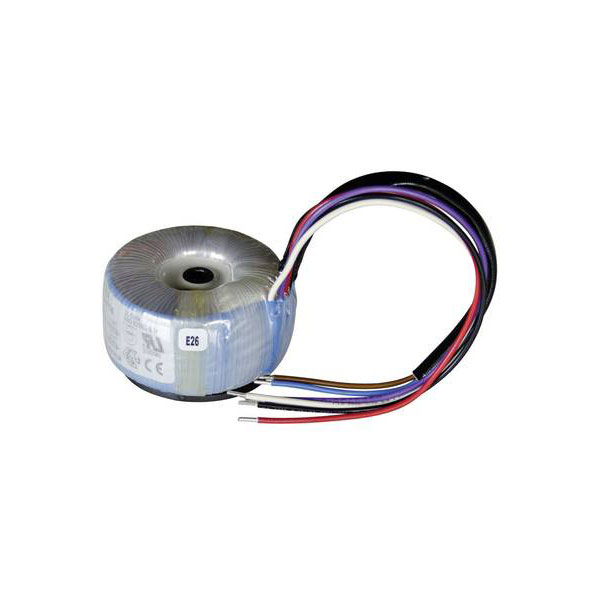

The Sedlbauer 825004 is a toroidal core transformer with primary input of 230 V and dual secondary outputs of 2 x 18 V AC, rated at 15 VA with a current of 0.42 A. Its compact toroidal design minimises electromagnetic interference, making it ideal for use in automation and halogen lighting applications. This transformer is manufactured by Sedlbauer, known for precision and reliability in electronic components.
Type Toroidal core transformer
(Ø) 60mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 60 mm x 39 mm
Frequency 50 - 60Hz
Height 39mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 0.42A
Output Voltage 18V AC
Output voltage (number x voltage) 2 x 18 V AC
Power 15VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
