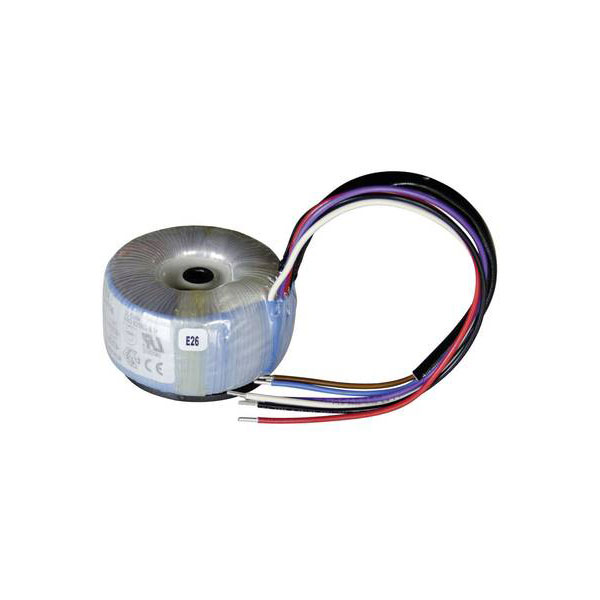

Sedlbauer 825002 Toroidal Transformer 230V/2x12V AC 15VA Low Magnetism

Sedlbauer
Order Code:

12-9182

Brand: Sedlbauer MPN: 825002 EAN-13: 2050001587688
Qty Unit Price (Ex VAT)
1+ £33.51
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Sedlbauer 825002 is a toroidal core transformer designed for automation systems, renowned for its compact and energy-efficient design. It operates with an input of 1 x 230 V and outputs 2 x 12 V AC with a power capacity of 15 VA and a current of 0.63 A. It is commonly used in applications like halogen lighting and low-voltage equipment.
Type Toroidal core transformer
(Ø) 60mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 60 mm x 39 mm
Frequency 50 - 60Hz
Height 39mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 0.63A
Output Voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 15VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
