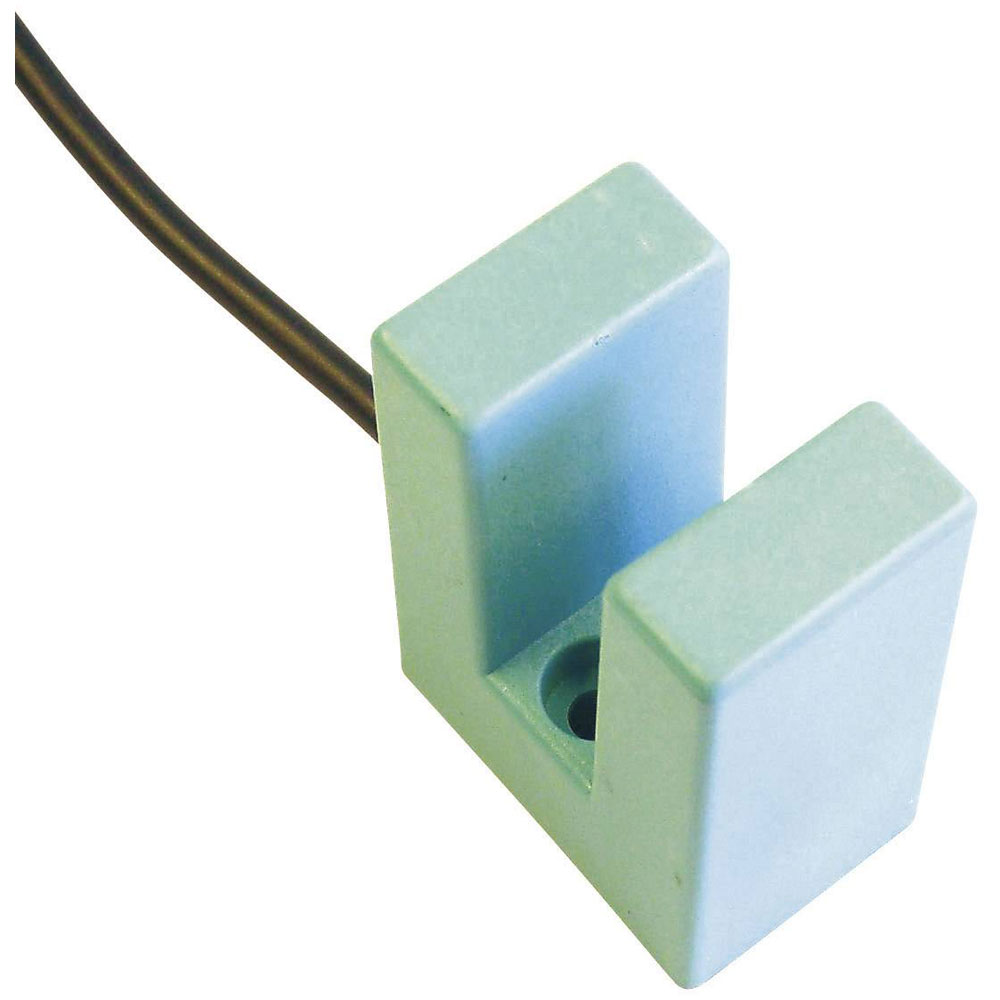

Secatec 75687 MKF30AUAK Reed Switch Classic Fork Design 1 Change-over

The Secatec MKF30AUAK is a reed switch capable of handling up to 150 V DC or 150 V AC with a current rating of 1 A and a power rating of 20 VA. It acts as a change-over switch, ideal for detecting door movements and monitoring open or closed positions. Typical applications include security systems and door contacts.

Type	Reed switch
Switching Current	1A
Switching Power	20W
Mounting Type	Screw-mount
Cable Length	1.00m
Connection	Open end cable
Contact Material	1 change-over
Dim	(L x W x H) 70 x 60 x 70 mm
Enclosure material	Plastic
Height	70mm
Length	70mm
Max. switching capacity	20VA
Maximum Temperature	+70°C
Min. temperature	-30°C
Misc Attribute	MKF30AUAK
Width	60mm
