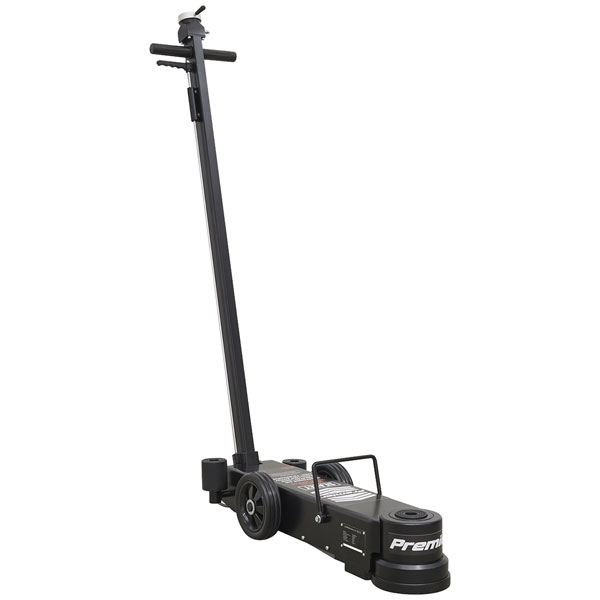

Sealey YAJ15-30LE Air Operated Jack 15-30tonne Telescopic - Long Reach/Low Entry

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See table for detailed specification.

• Min./Max. Height: 150/409mm.
• Powerful and reliable.
• Lifts heavy plant, tractors and commercial vehicles.
• Extensions: 45, 75mm.
• Max. Capacity: 30 Tonne.
• Long reach, low entry.
• 3 Year Guarantee*.
• Model No. YAJ15-30LE

Type	Air Bottle Jack
Load Capacity	30tonne
Air Consumption	11.5cfm
Capacity	30tonne
Chassis Length	810mm
Extensions	45/75mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne)	343/30
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne)	409/15
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne)	N/A
Maximum Length	2190mm
Minimum Saddle Height	150mm
Nett Weight	52kg
Overall Width	295mm
Piston Stroke	139mm
Screw Extension	n/a
Width without Wheels	215mm
Working Pressure	116-174psi
