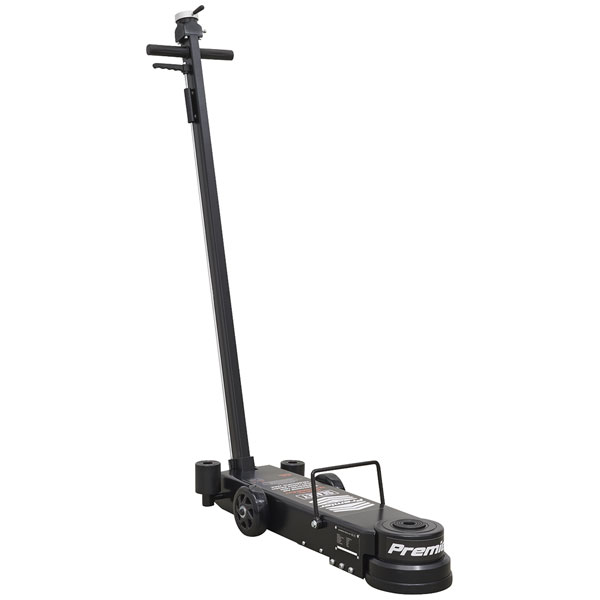

Sealey YAJ10-40LELR Air Operated Jack 10-40tonne Telescopic Long Reach/Low Entry

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with 45/75mm extensions that close the gap between the saddle of the jack and the jacking point. See chart for detailed specification.

• Min./Max. Height: 130/409mm.
• Powerful and reliable, this 3-stage jack is ideal for workshop or roadside use.
• Lifts heavy plant, tractors and commercial vehicles.
• Extensions: 45, 75mm.
• Maximum Capacity: 40 Tonne.
• Long reach, low entry, easier access to hard to reach jacking points.
• 3 Year Guarantee*.
• Model No. YAJ10-40LELR

Type	Air Bottle Jack
Load Capacity	40tonne
Air Consumption	11.5cfm
Capacity	40tonne
Chassis Length	830mm
Extensions	45/75mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne)	302/40
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne)	347/20
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne)	396/10
Maximum Length	2210mm
Minimum Saddle Height	130mm
Nett Weight	54kg
Overall Width	282mm
Piston Stroke	159mm
Screw Extension	N/A
Width without Wheels	179mm
Working Pressure	116-174psi
