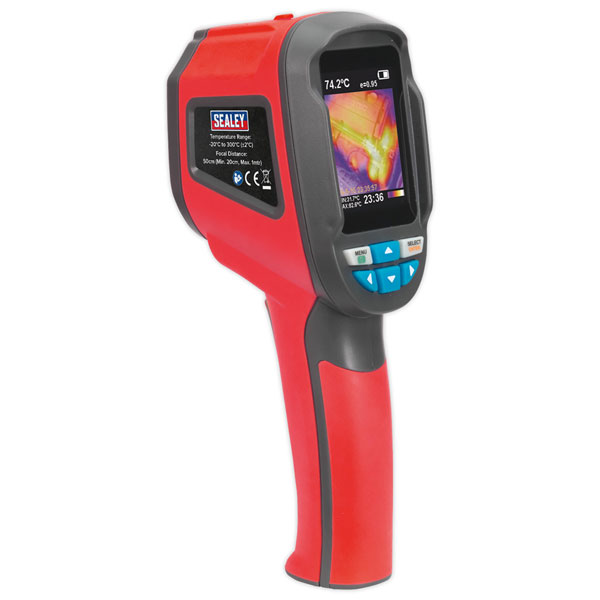

Identify hotspots and cold zones in systems and surfaces. On-screen cursor highlights precise temperature variations. 70mm screen delivers sharp visual feedback. Combines traditional imaging with thermal overlays at adjustable intensities. 26×19° field of view. Focal distance from 3.2mm, adjustable between 200–400mm. Rechargeable 2000mAh battery. Identify faults in heated seats, power windows, and wiring resistance with precision. Locate electrical overheating faults in fixings and connections. Highlight damp areas and potential water ingress. Inspect radiators, plumbing lines and underfloor heating performance. Reveal insulation gaps around seals, frames and windows. Supplied in a storage case.
- Identify hotspots and cold zones in systems and surfaces.
- On-screen cursor highlights precise temperature variations.
- 70mm Screen delivers sharp visual feedback.
- Combines traditional imaging with thermal overlays at adjustable intensities.
- 26×19° Field of view.
- Focal distance from 3.2mm, adjustable between 200–400mm.
- Rechargeable 2000mAh battery.
- Identify faults in heated seats, power windows, and wiring resistance with precision.
- Locate electrical overheating faults in fixings and connections.
- Highlight damp areas and potential water ingress.
- Inspect radiators, plumbing lines and underfloor heating performance.
- Reveal insulation gaps around seals, frames and windows.
- Supplied in a storage case.
- Model No. VS912
| Accuracy |
>0°C ±2% or reading ±2°C/3.6°F; <0°C; ±3°C/5.4°F |
| Auto-Power Off |
Selectable: 5min/20min/Not Power-Off Automatically |
| Battery Run Time |
3hrs |
| Colour Palette |
Rainbow, Iron Oxide Red, Cold Color, Black & White, White & Black |
| Display Screen |
70mm TFT Colour Display |
| Emissivity |
0.1 to 1 Adjustable |
| Field of Vision |
26°×19° |
| File Format |
JPG/MP4 |
| Focal Distance |
3.2mm, adjustable between 200–400mm |
| Focus Mode |
Fixed |
| Image Capture Frequency |
25Hz |
| Image Mix (Camera to Thermal) |
0%, 25%, 50%, 75%, 100% |
| Memory Capacity |
Internal Memory 3GB |
| Nett Weight |
0.66kg |
| Power Source |
2000mAh |
| Power Supply |
Rechargeable 2000mAh battery or Type-C Power Supply |
| Resolution |
Infrared Image 120 x 90 (10800 Pixels)-Camera Image 3 Mega Pixels |
| Screen Size |
70mm |
| Software Analysis |
Support |
| Storage |
Built-in 4G eMMC
(about 3G storage space available to the user |
| Storage Conditions |
-20°C to 60°C/-4°F to 140°F; 10 to 85%RH (non-condensing) |
| Temperature Range |
-20°C to +550°C (-4°F - 1022°F) |
| Thermal Sensitivity |
0.15°C/0.9°F |
| Video Capture |
Yes |
| Visual Image Resolution |
3 Megapixel |
| Wavelength Range |
8-14um |
| Working Conditions |
-10°C to 50°C/14°F to 144°F; 10 to 85%RH (non-condensing) |
