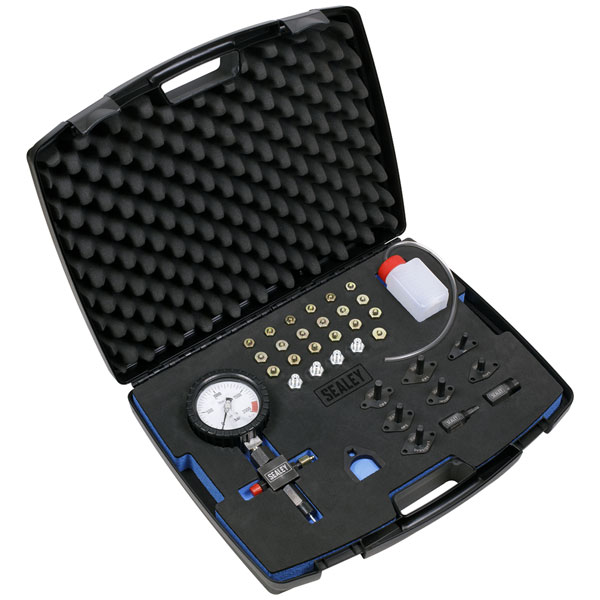

Sealey VS216 Diesel High Pressure Pump Test Kit

Essential tool for accurately measuring the high pressure fuel circuit of diesel common rail systems. Features 2,000bar gauge, pressure relief valve and high pressure flexible hoses. The kit also includes a set of dummy pump regulator and injector pipe blanks. Kit allows for a variety of tests to be conducted: - Engine cranking/running pressure test - Maximum pump pressure test - Pump pressure regulator test - Injector leakage test

• Essential tool for accurately measuring the high pressure fuel circuit of diesel common rail systems.
• Features 2,000bar gauge, pressure relief valve and high pressure flexible hoses.
• The kit also includes a set of dummy pump regulator and injector pipe blanks.
• Kit allows for a variety of tests to be conducted: - Engine cranking/running pressure test - Maximum pump pressure test - Pump pressure regulator test - Injector leakage test
• Model No. VS216

Dummy Regulator Applications	Bosch CP1, Bosch CP3, Bosch CP4, Delphi DFP1/DFP3, Denso HP1/HP2, Denso HP3, Siemens DCP1, Siemens DCP2
Gauge Pressure Range	0-2000bar
Hose Fitting Adaptors	M12 x 1.25 (x2), M14 x 1.25 (x2)
Hose Fittings	M12 x 1.5 (x2), M14 x 1.5 (x2), M14 x 1 (x1), M16 x 1 (x1)
Hose Length	500mm (x6)
Injector Pipe Blanks	M12 x 1.5 (x6), M14 x 1.5 (x6), M14 x 1 (x6)
Nett Weight	5.56kg
Pump Outlet Blank	M12 x 1 (x1)
