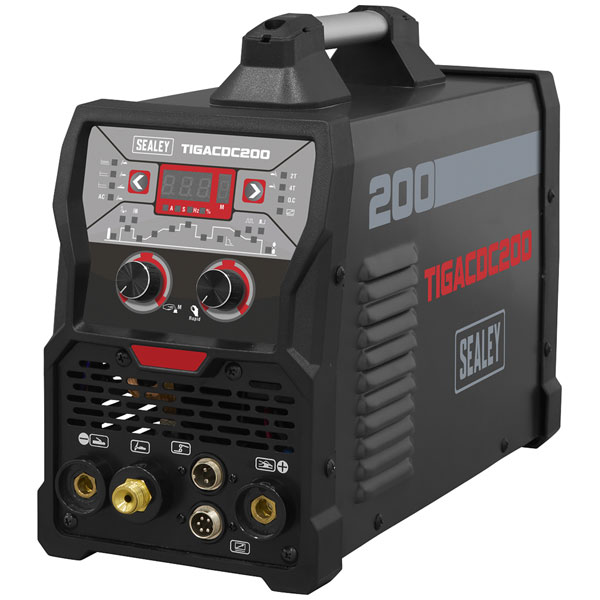

IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A. Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium. 20-Stage parameter adjustment program to suit welders requirements. Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician. Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption. Suitable for MMA/ARC welding using the lift start method for better weld quality. Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal for when greater control is required.
- IGBT Inverter technology fitted with fan-cooled AC/DC power supply suitable for both TIG and MMA/ARC welding applications up to 200A.
- Suitable for welding a variety of metals including aluminium, magnesium, stainless steel, steel, copper, nickel and titanium.
- 20-Stage parameter adjustment program to suit welders requirements.
- Weighing 8.5kg this welder is highly portable allowing the welder to be taken to the job at hand making it ideal for the mobile technician.
- Features hot start, anti-stick, forced air cooling, thermal cut-out protection and quick release switch on the torch for control of gas, saving on consumption.
- Suitable for MMA/ARC welding using the lift start method for better weld quality.
- Supplied with earth clamp, TIG torch and accessories, electrode holder and foot pedal for when greater control is required.
- Model No. TIGACDC200
| Type |
Inverters |
| For Use With |
Sealey |
| Absorbed Power |
5.4KW |
| Duty Cycle |
AC - 100% @ 110A, 60% @ 141A, 30% @ 200A
DC - 100% @ 93A, 60% @ 120A, 30% @170A |
| Electrode Capacity |
Ø1.6-4mm |
| Insulation class |
F |
| Nett Weight |
8.5kg |
| Note |
*to achieve maxiumum power a 32A supply may be required. |
| Power Output |
10-200A |
| Protection |
IP21S |
| Supply |
230V* |
