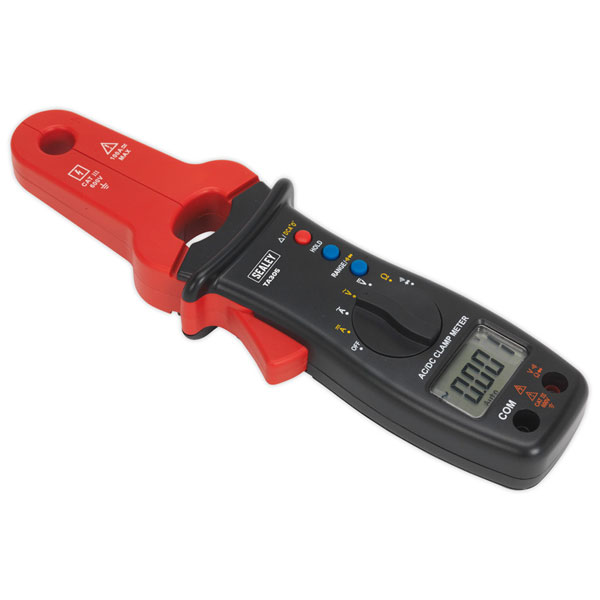

Sealey TA305 AC/DC Clamp Meter & Multimeter

Designed for the automotive electrician and conforms to EN 61010 CAT III 600V. Ideal for measuring current draw from vehicle components in situ. Features 10mm clamp. Supplied in pouch. Measures: • AC/DC Voltage • AC/DC Current • Resistance • Audible Continuity • Diode Test.

• Designed for the automotive electrician and conforms to EN 61010 CAT III 600V.
• Ideal for measuring current draw from vehicle components in situ.
• Features 10mm clamp.
• Supplied in pouch.
• Model No. TA305

AC Current (Accuracy)	40A, 100A (±2.5%)
AC Voltage (Accuracy)	400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%)
Auto power off	Yes
Auto-Ranging	Yes
Back Light	No
Bar Graph Display	No
Batteries (supplied)	2 x 1.5V
Capacitance	No
Continuity	<50?
Data hold	Yes
DC Current (Accuracy)	40A, 100A (±2.5%)
DC Voltage (Accuracy)	400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%)
Digits Height	11mm
Diode Test	Yes
Duty Cycle	No
Dwell	No
Feature	10mm clamp.
Frequency Range	40Hz-400Hz
Hi-Impact Case	No
Inductive Coupler	No
Input Impedance	10MO
Insulation test	No
IR Temperature	No
Jaw Opening Capacity	10mm
Low Battery Indicator	Yes
Maximum Measurable Conductor	Ø10mm
Nett Weight	185g
PC Interface	No
Pulse Width	No
Resistance	400? (±1.2%), 4k?, 40k?, 400k? (±1.0%), 4M? (±1.2%), 40M? (±1.5%)
Size (L x W x D)	226 x 71 x 38mm
Tach (rpm)	No
Temperature	No
Transistor Test	No
Weight	185g
