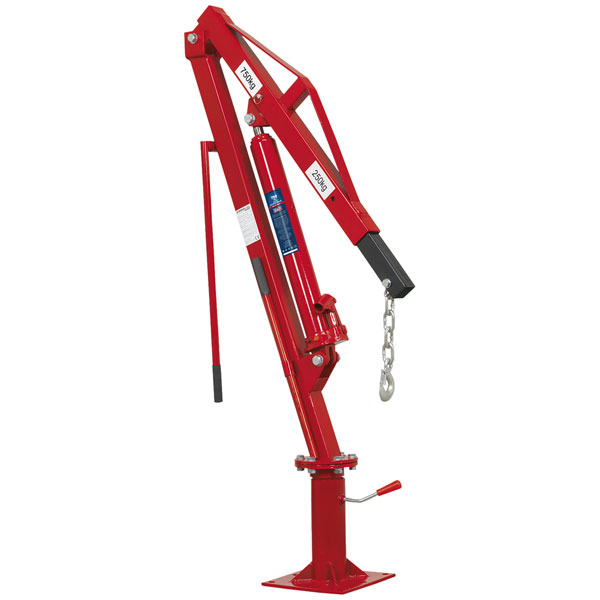

Sealey SSC750 Static Mounted Crane 750kg

Unique 360° locking swivel base for easy rotation. Mounts easily onto any strong and stable surface including loading bays, 4x4s, flatbed trucks and trailers. Heavy-duty chain and hook with safety clip. Dead man’s control release valve allows fine adjustment for safe, controlled lowering of load.

• Heavy-duty steel.
• Powder coated finish.
• Unique 360° swivel base.
• Threaded locking arm.
• Mounts easily onto any strong and stable surface.
• Robust lifting ram.
• Max. Capacity (lifting boom retracted): 750kg
• Max. Capacity (lifting boom extended): 250kg.
• Heavy-duty chain and hook.
• Hook features safety clip.
• Model No. SSC750

Type	Static Mounted Crane
Load Capacity	750kg
Height Jib Down	1530mm
Height Legs Folded	n/a
Height of Frame	n/a
Length	n/a
Length Legs Extended	n/a
Length of Jib Position 1	825mm
Length of Jib Position 2	1180mm
Length of Jib Position 3	n/a
Length of Jib Position 4	n/a
Length of Jib Position 5	n/a
Lifting Capacity in Position 1	750kg
Lifting Capacity in Position 2	250kg
Lifting Capacity in Position 3	n/a
Lifting Capacity in Position 4	n/a
Lifting Capacity in Position 5	n/a
Max. Lift Ht at Jib Position 1	2060mm
Max. Lift Ht at Jib Position 2	2350mm
Max. Lift Ht at Jib Position 3	n/a
Max. Lift Ht at Jib Position 4	n/a
Max. Lift Ht at Jib Position 5	n/a
Nett Weight	49kg
Rear Width	n/a
Width Front Frame	n/a
Width Inside Front Frame	n/a
