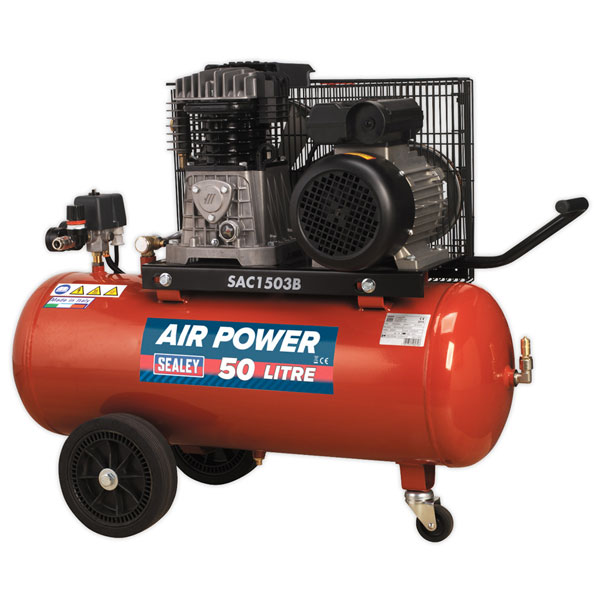

Suitable for the professional workshop, these units are fitted with a genuine 3.5hp motor. Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply. Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Equipped with rear wheels and two casters at the front, along with a sturdy front handle, for effortless movement and positioning in the workshop.
- Air Displacement: 15cfm(425L/min).
- Maximum Free Air Delivery: 10.59cfm(300L/min).
- Maximum Pressure: 116psi(8bar).
- Suitable for the professional workshop, these units are fitted with a genuine 3.5hp motor.
- Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.
- Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
- Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
- Equipped with rear wheels and two casters at the front, along with a sturdy front handle, for effortless movement and positioning in the workshop.
- Model No. SAC1503B
| Type |
Belt Driven Air Compressor |
| Capacity |
50L |
| Maximum Pressure |
3hp |
| Voltage |
230V |
| Air Displacement cfm(L/min) |
15cfm(425L/min) |
| Horsepower |
3hp |
| Lifetime Warranty |
No |
| Maximum Free Air Delivery cfm(L/min) |
10.59cfm(300L/min) |
| Minimum Rated Supply |
13A |
| Motor Output |
3.5hp |
| Nett Weight |
58kg |
| Noise Level |
90dB |
| Oil Capacity |
1000ml |
| Outlet |
Quick release coupling |
| Phase |
1ph |
| Receiver Capacity |
50L |
| Size (W x D x H) |
920 x 420 x 840mm |
| Speed |
1100rpm |
| Supply |
230V/13A |
