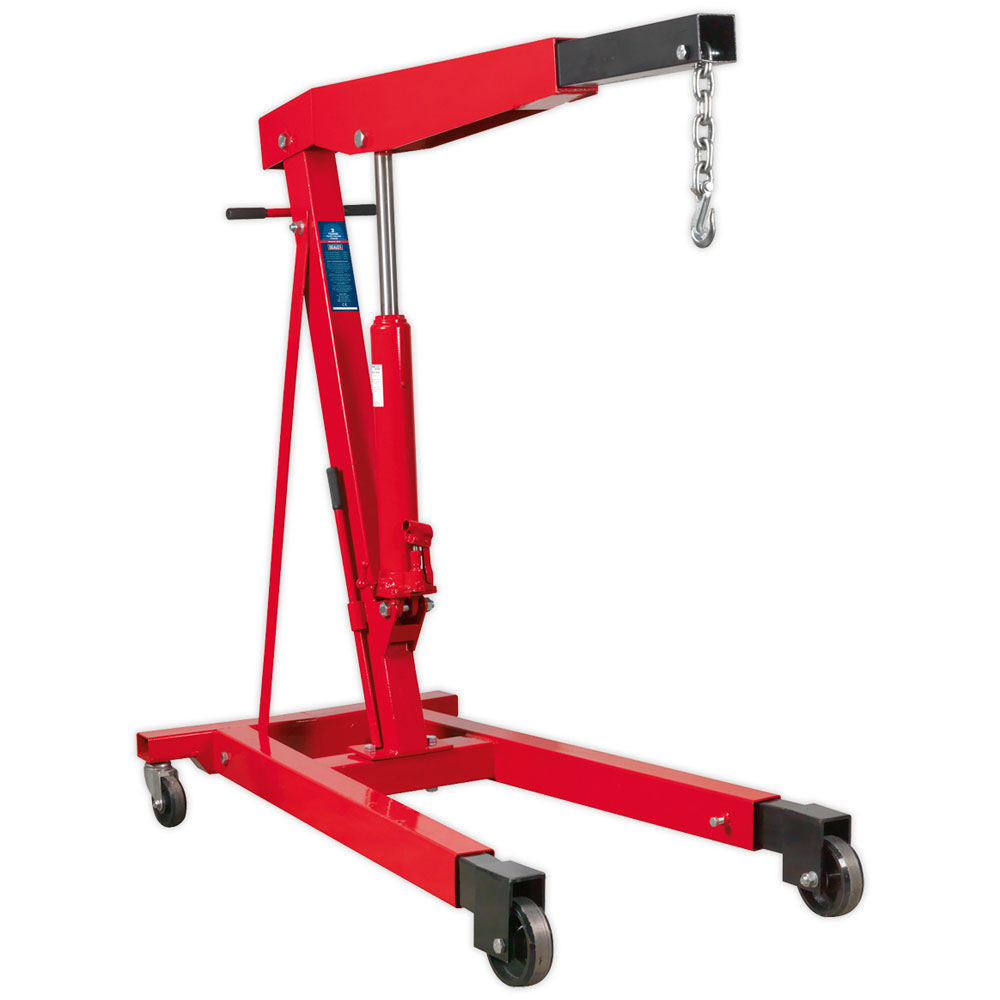

Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
| Model No | PH30 |
| Height Jib Down: | 1610mm |
| Height Legs Folded: | n/a |
| Height of Frame: | 195mm |
| Length Legs Extended: | n/a |
| Length of Jib Position 1: | 1200mm |
| Length of Jib Position 2: | 1400mm |
| Length of Jib Position 3: | 1610mm |
| Length of Jib Position 4: | 1820mm |
| Length of Jib Position 5: | n/a |
| Length: | 1940mm* |
| Lifting Capacity in Position 1: | 3000kg |
| Lifting Capacity in Position 2: | 2000kg |
| Lifting Capacity in Position 3: | 1500kg |
| Lifting Capacity in Position 4: | 1000kg |
| Lifting Capacity in Position 5: | n/a |
| Max. Lift Ht at Jib Position 1: | 1880mm |
| Max. Lift Ht at Jib Position 2: | 1970mm |
| Max. Lift Ht at Jib Position 3: | 2010mm |
| Max. Lift Ht at Jib Position 4: | 2220mm |
| Max. Lift Ht at Jib Position 5: | n/a |
| Nett Weight: | 155kg |
| Note: | *Legs Extended |
| Rear Width: | 780mm |
| Width Front Frame: | 855mm* |
| Width Inside Front Frame: | 700mm* |
| Type |
Engine Crane |
| Load Capacity |
3tonne |
| Height Jib Down |
1610mm |
| Height of Frame |
195mm |
| Length Legs Extended |
950mm |
| Length of Jib Position 1 |
1200mm |
| Length of Jib Position 2 |
1400mm |
| Length of Jib Position 3 |
1610mm |
| Length of Jib Position 4 |
1820mm |
| Lifting Capacity in Position 1 |
3000kg |
| Lifting Capacity in Position 2 |
2000kg |
| Lifting Capacity in Position 3 |
1500kg |
| Lifting Capacity in Position 4 |
1000kg |
| Max. Lift Ht at Jib Position 1 |
1880mm |
| Max. Lift Ht at Jib Position 2 |
1970mm |
| Max. Lift Ht at Jib Position 3 |
2010mm |
| Max. Lift Ht at Jib Position 4 |
2220mm |
| Nett Weight |
155kg |
| Rear Width |
780mm |
| Width Front Frame |
855mm* |
| Width Inside Front Frame |
700mm* |
