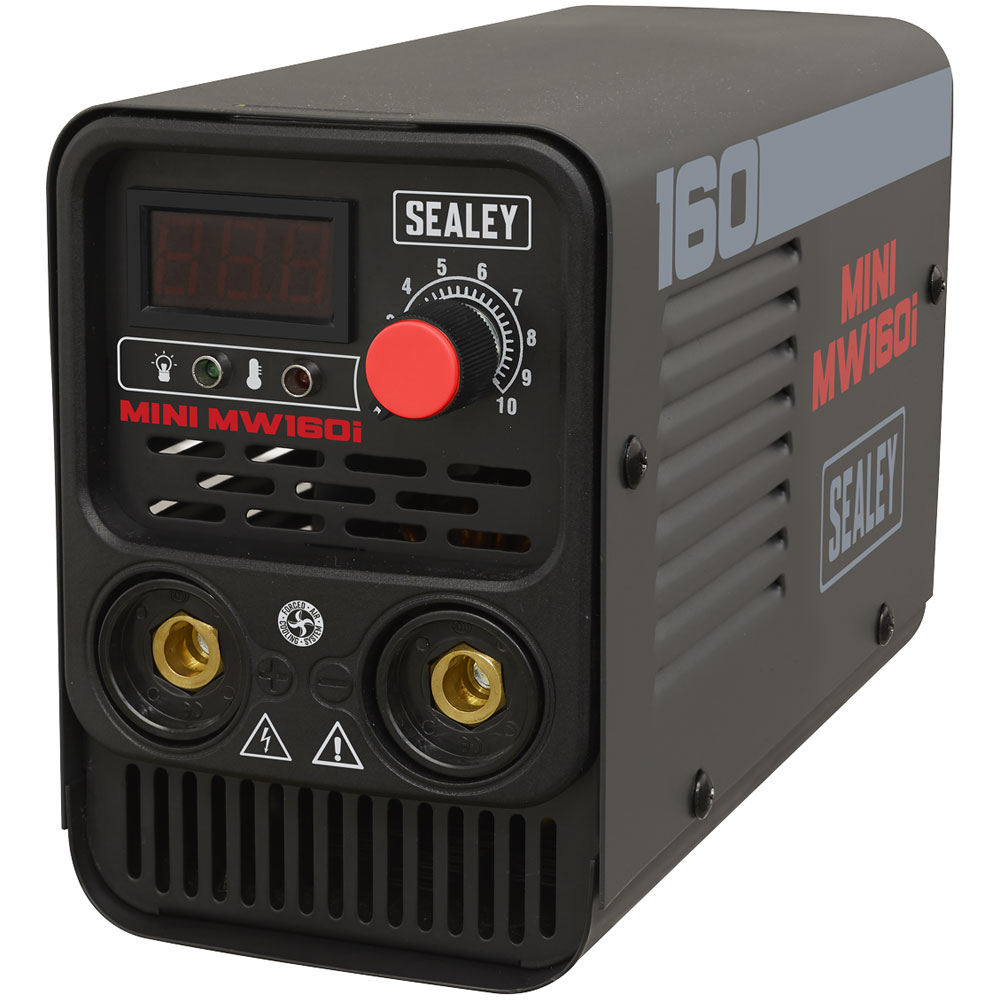

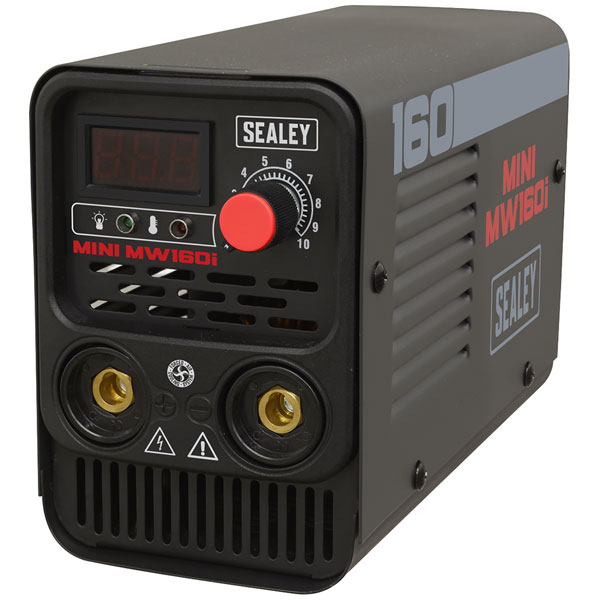

Sealey MINIMW160i Inverter Welder 160A/230V

Ultra-compact and lightweight unit weighing just 4kg approx. Portability allows the welder to be taken to the job at hand, ideal for mobile technicians. Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø4mm. Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions. Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, both with 10-25 dinse connectors. Forced air cooling system.

• Ultra-compact and lightweight unit weighing just 4kg approx.
• Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
• Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø4mm.
• Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
• Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, both with 10-25 dinse connectors.
• Forced air cooling system.
• Model No. MINIMW160i

Type	Inverter Welder
Voltage	230V
Output Current	20-160A
Absorbed Power	5kW
Duty Cycle	100% @ 124A, 60% @160A
Electrode Capacity	Ø1.6-4mm
Nett Weight	4.1kg
Protection	IP21S
Supply	230V-16A* *Note: To achieve maximum power a 16A supply may be required.
Weight	4.1Kg
Welding Current	20-160A
