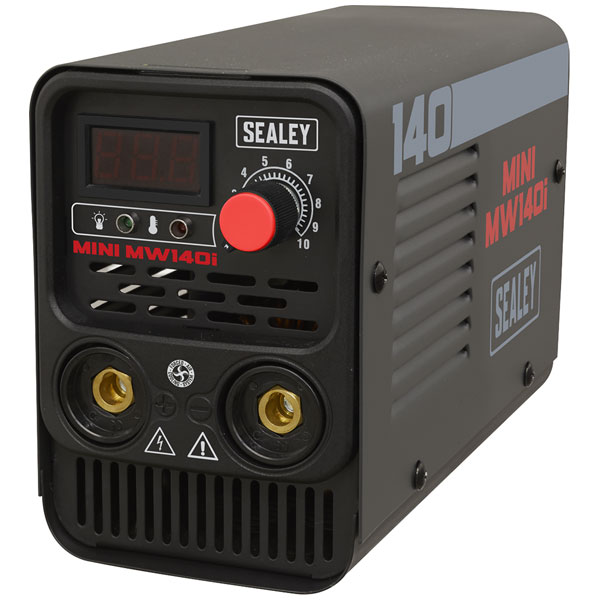

Sealey MINIMW140i Inverter Welder 140A/230V

Ultra-compact and lightweight unit weighing approximately 4kg. Portability allows the welder to be taken to the job at hand, ideal for mobile technicians. Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm. Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions. Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, both with 10-25 dinse connectors. Forced air cooling system.

• Ultra-compact and lightweight unit weighing approximately 4kg.
• Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
• Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm.
• Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
• Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, both with 10-25 dinse connectors.
• Forced air cooling system.
• Model No. MINIMW140i

Type	Inverter Welder
Voltage	230V
Output Current	20-140A
Absorbed Power	4.2kW
Duty Cycle	100% @ 108A, 60% @ 140A
Electrode Capacity	Ø1.6-3.2mm
Nett Weight	3.9kg
Protection	IP21S
Supply	230V-16A* *Note: To achieve maximum power a 16A supply may be required.
Weight	3.9Kg
Welding Current	20-140A
