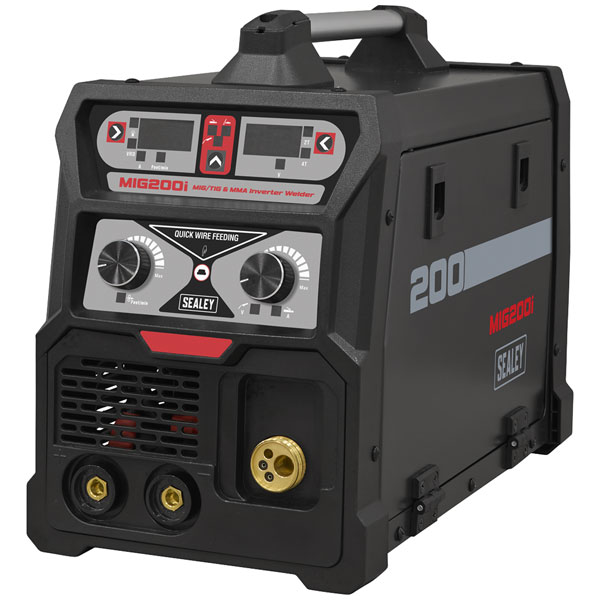

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 200A. Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians. Ultra-compact and lightweight unit weighing just 11.1kg approx. Supplied with handle making this unit highly portable allowing the welder to be taken to the job at hand. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 5kg Ø0.8/Ø0.9/Ø1.0mm solid wire and flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4.0mm electrode. Supplied with non-live MIG torch 2.8m, 1.4m earth cable/clamp, 1.6m electrode holder.
- IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 200A.
- Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians.
- Ultra-compact and lightweight unit weighing just 11.1kg approx. Supplied with handle making this unit highly portable allowing the welder to be taken to the job at hand.
- Featuring hot start, anti-stick, forced air cooling and thermal cut out protection.
- Unit can MIG weld using 5kg Ø0.8/Ø0.9/Ø1mm solid wire and flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4mm electrode.
- Supplied with non-live MIG torch 2.8m, 1.4m earth cable/clamp, 1.6m electrode holder.
- Model No. MIG200i
| Type |
Inverters |
| For Use With |
Sealey |
| Absorbed Power |
7.7 kW |
| Duty Cycle MIG |
60% @ 200A, 100% @ 154A |
| Duty Cycle MMA |
60% @ 170A, 100% @ 131A |
| Duty Cycle TIG |
60% @ 170A, 100% @ 131A |
| Electrode Capacity |
Ø1.6 - 4mm |
| IP Rating |
IP21S |
| Nett Weight |
11.1kg |
| Protection Class |
H |
| Welding Current |
50-200A |
| Wire Capacity |
5kg |
