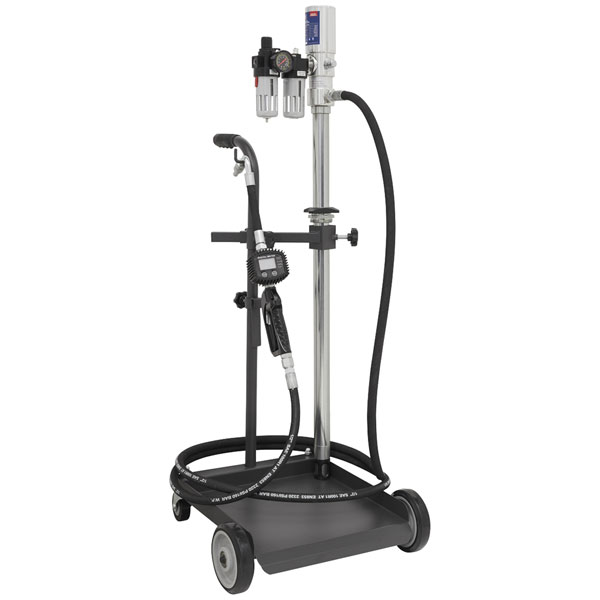

Sealey AK4563D Gear Oil Dispensing System Air Operated

Mobile oil dispensing unit with air operated 3:1 double acting pump for gear oil with 2""BSP fittings. Pump is supplied with air management system and connected to a 730mm rigid suction probe with non-return valve. Features 4m hose and digital oil meter (Model No. AK4565D supplied). Also suitable for use with engine, hydraulic, synthetic, gear and transmission oils up to SAE150 in containers up to 50kg.

• Mobile oil dispensing unit with air operated 3:1 double acting pump for gear oil with 2""BSP fittings.
• Pump is supplied with air management system and connected to a 730mm rigid suction probe with non-return valve.
• Features 4m hose and digital oil meter (Model No. AK4565D supplied).
• Also suitable for use with engine, hydraulic, synthetic, gear and transmission oils up to SAE150 in containers up to 50kg.
• Model No. AK4563D

Type	Air operated oil dispensing pump station
Capacity	12l/min
Maximum air pressure	115psi
Maximum Flow Rate	12L/min
Maximum Output Pressure	350psi
Maximum Trolley Capacity	50kg
Maximum Viscosity	SAE150
Nett Weight	18.45kg
Outlet Size	1/2"BSP
Pump Ratio	3:1
Recommended Air Pressure	70psi
