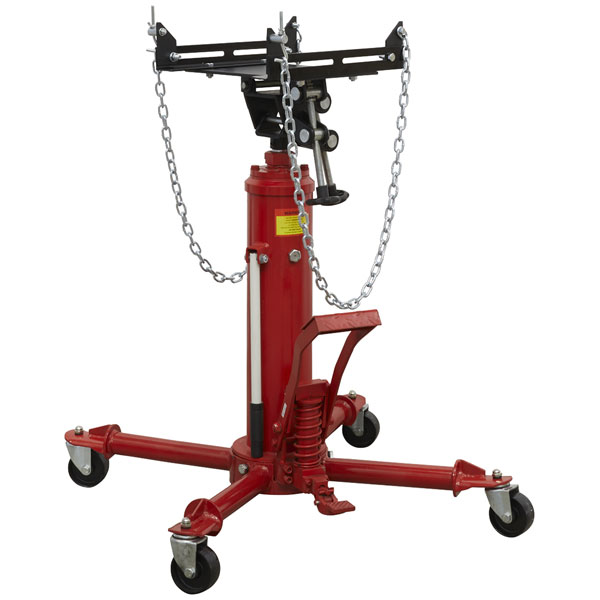

Sealey 500TTJ Transmission Jack 0.5tonne Vertical Telescopic

Twin axis saddle adjustors allow the gearbox support to be angled in any direction. A 2-stage telescopic piston for reduced clearance lifts. A harden chrome plated piston rod. Foot pedal operation keeps hands-free. Spring loaded dead mans safety release control reduces the risk of inadvertent lowering. Four heavy duty castors, with non-marking nylon wheels, on a sturdy base, make for easy manoeuvrability.

• Twin axis saddle adjustors allow the gearbox support to be angled in any direction.
• A 2-stage telescopic piston for reduced clearance lifts.
• Features a hardened chrome plated piston rod.
• Foot pedal operation keeps hands free.
• Spring loaded dead mans safety release control reduces the risk of inadvertent lowering.
• Four heavy duty castors, with non-marking nylon wheels, on a sturdy base, make for easy manoeuvrability.
• Model No. 500TTJ

Type	Hydraulic Gearbox Lift
Load Capacity	600kg
Base Size	600 x 600mm
Capacity	600kg
Fixed/Adjustable Saddle	Adjustable
Maximum Saddle Height	1905mm
Minimum Saddle Height	885mm
Nett Weight	54kg
Pump Strokes to Maximum Height	n/a
Ram Extensions	2
Saddle Tilt - Backward	10°
Saddle Tilt - Forward	10°
