SCI R13-512B2 RED Latching Push Switch Lg Button Red

SCI
MPN
R13-512B2 RED
Brand
SCI
Order Code
78-0235
Country of Origin
China
Qty Unit Price (Ex VAT)
1+ £1.66
25+ £1.46
100+ £1.29
500+ £1.19
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Despatched same day - 2,344 in stockAdditional quantity lead time 9 months

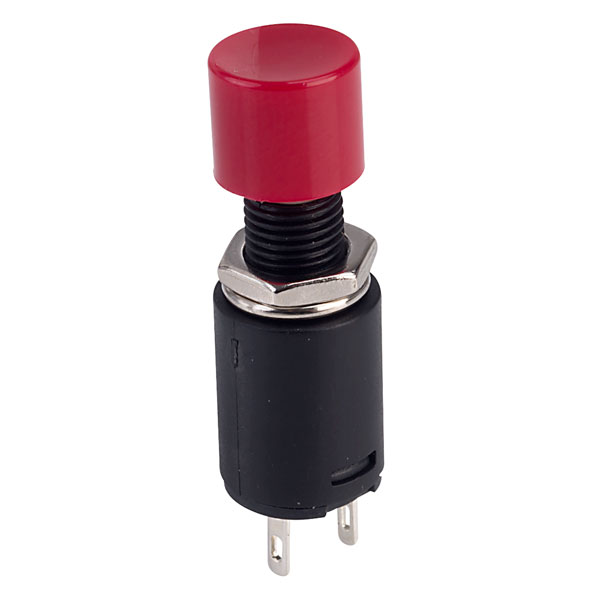

Miniature latching push SPST switch with large red button and round actuator.


  • SPST off-on operation
  • 3A contact current
  • 250V contact voltage
  • Brass contact, silver plated
  • Non-illuminated
  • Solder lug terminal
  • Overall length 40.5mm
  • 10mm actuator
  • Fits into 7mm panel cut-out, max thickness 4mm
  • Nylon frame to UL 94V-2
  • SCI R13-512 Series
Type Push-button
Contact Configuration Off / on
Switch Function N/A
Current Rating 3A
Mounting Panel
Illumination Red
Panel Cutout Dimensions 7

Questions

*Question functionality currently disabled
Question by: Product code: 78-0235

Q. What is the diameter of the black base?

A. Hi Sandra, thank you for your question. The diameter is 10mm.

Question by: Product code: 78-0235

Q. Hi, What depth of hole do I need to accommodate the rear of the switch?

A. Hi Shaun, thank you for your question. An overall of 21mm would be required.
