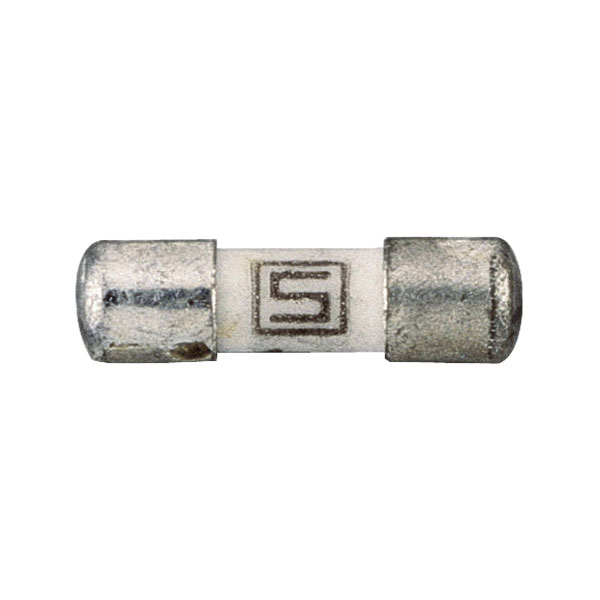

Schurter 7010.9760 SMD MELF Fuse 0.125A

The Schurter 7010.9760 is a Quick Acting Surface Mount Fuse (SMD). This tube shaped Ceramic Fuse is rated at 125V AC/DC, 0.125A. The fuse has a breaking capacity of 300A @ 125V AC/DC and can be soldered directly on printed circuit boards.

• High breaking capacity
• Dimensions, length: 7mm
• Dimensions: 2mm diameter
• Fuse type: SMD fuse
• Release characteristics: quick response F-
• Type (resistor): MELF
• Ideal for SMT and PCB mounting
• Standards: UL 248-14; CSA C22.2 no. 248.14
• Approvals: UL File Number: E42088; CSA File Number: 34549
• Supplied with a Voltage Rating of 125V AC/DC
• Supplied with a Power Rating of 0.125A
• Manufacturer's part: Schurter 7010.9760
