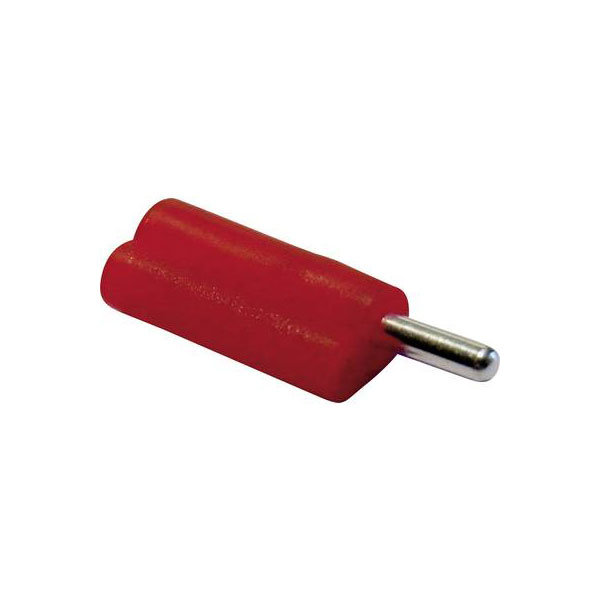

Schnepp F 2020-RD Banana Plug Straight 2mm Pin Red 1 piece Longitudinal Socket

Image Representative of Range

Schnepp F 2020-RD Banana Plug Straight 2mm Pin Red 1 piece Longitudinal Socket

Schnepp
Standard range
Order Code:

12-9054

Brand: Schnepp MPN: F 2020-RD EAN-13: 2050000235498
Qty Unit Price (Ex VAT)
1+ £0.751
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
415 in stock, despatched in 4 working days

The Schnepp F 2020 banana plug is a straight, red connector with a pin diameter of 2 mm. It features a spring contact design suitable for laboratory settings and use with 4 mm safety sockets. This plug is ideal for creating secure and reliable connections in electronic testing and measurement applications.
Type Banana plug
Connection Soldering
Connector type Plug, straight
Contact material Silver plated
Cross section (flexible) (max.) 0.5mm²
Factory colour Red
Insulation material PE
Insulation type Partially insulated
Manufacturer part # F 2020-RD
Misc Attribute 1 Connector
Misc Attribute 2 F 2020
Nominal current 5A
Nominal current - rounded value 5A
Nominal current (details) 5A
Nominal voltage (details) 60 V/DC 30V AC
Pin Ø 2mm
RoHS-compliant Yes
