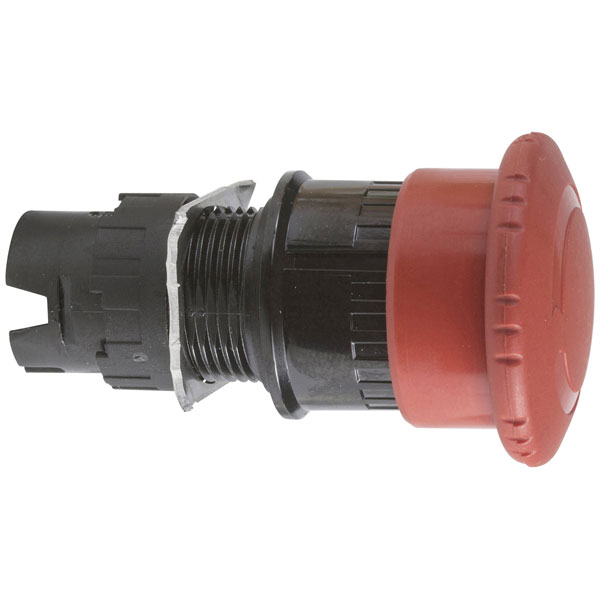

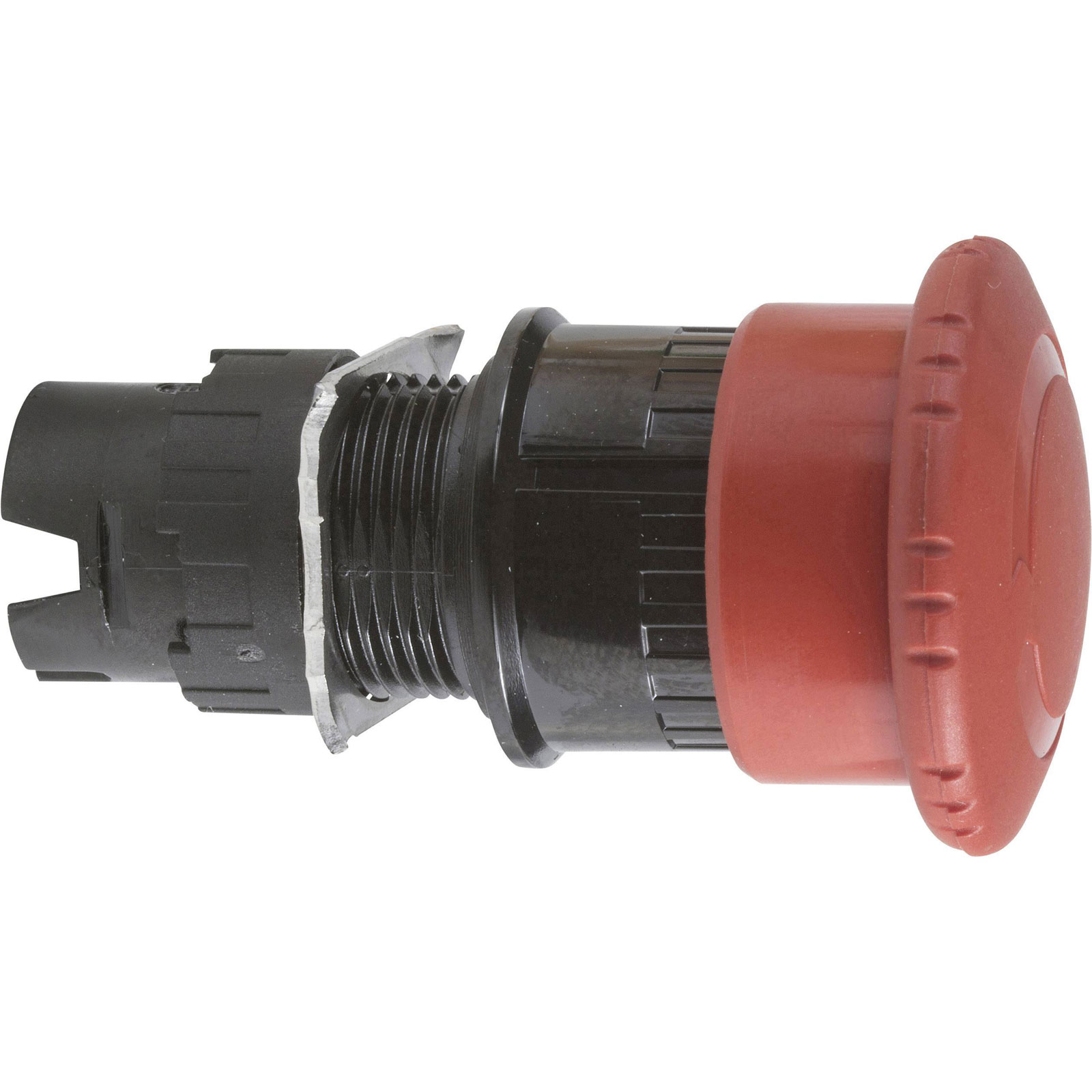

Schneider Electric ZB6AS834 kill Switch head emergency-off Pushbutton 30mm

Schneider Electric's ZB6AS834 is a kill switch head designed with a single button for safety applications. It features a robust build suitable for emergency stop mechanisms and industrial safety systems. Typically deployed in machinery and equipment, it ensures quick and reliable shutdown in critical situations.

Type	Kill switch head
IP Rating	IP65
Button Diameter	30mm
Colour button	Red
Colour front ring	Black
Construction type lens	Round
Degree of protection (NEMA)	Other
Depth	50mm
Diameter cap	30mm
Dimensions	(W x H x D) 30 x 30 x 50 mm
Height	30mm
Height opening	N/A
Hole Diameter	16.2mm
Material front ring	Plastic
Maximum Temperature	+70°C
Min. temperature	-40°C
Operation type	1-button
Recess Diameter	16mm
Spring-return	false
Suitable for emergency stop	true
Suitable for lighting	false
Supply voltage lamp	N/A
Switching function latching	true
Type of button	High
Unlocking mechanism	Push
Unlocking method	Turn-release
Weight	0.035kg
Width	30mm
Width opening	N/A
With front ring	true
With lighting	false
